tvLYT™
Surface Temperature Measurement by Liquid Crystals
tvLYT™ is a high-resolution liquid crystal thermography system that provides a cost-effective and portable solution for precision temperature measurement of electronics, circuit boards, micro-circuits, hybrid components, and integrated circuits. Use tvLYT™ to locate hot spots and defects, design and verify integrated circuits, and quickly and easily analyze the temperature gradient of devices and systems.
- High performance, solid-state, color camera with macroscopic optic
- Stable, flicker-free LED light source
- USB Connection

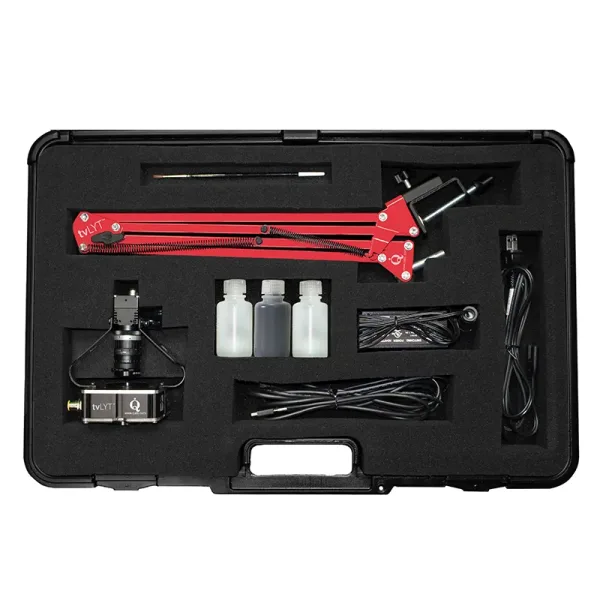

- Thermochromic Liquid Crystal (TLC) materials supplied in an easy to use kit
- Windows-compatible image processing software system, thermVIEW™ Lite
- Lifetime technical support
- Manual Focus
- Field of view at 15mm distance: 26 x 26mm
- Field of view at 48mm distance: 180 x 180mm
- Software capabilities to 200mm by a factor of 16
- Temperature accuracy to 1°C
- Gooseneck for traversing camera support
- LED lighting for high-intensity uniform illumination of the test specimen
- A completely optical system based on visible light, independent of surface emissivity, as is required for infrared systems
