Beagle USB 5000 v2 SuperSpeed Protocol Analyzer – Ultimate Edition
TP322610
The Beagle USB 5000 v2 SuperSpeed Protocol Analyzer, the winner of Best in Test 2012, is a world-class USB 3.0 bus monitor that provides real-time interactive capture and analysis of USB 3.0 and USB 2.0 traffic (up to 5 Gbps).
The Beagle USB 5000 v2 SuperSpeed Protocol Analyzer – Ultimate Edition is a state-of-the-art USB bus monitor that provides real-time capture and analysis of USB data. With a USB 3.0 downlink and multi-analyzer synchronization to the platform, this blazing fast, advanced tool is loaded with interactive and flexible features for even the most experienced USB developer. Free Data Center™ Software and cross-platform support for Windows, Linux, and Mac OS X make the Beagle USB 5000 v2 analyzer a user-friendly and versatile tool for any engineer working with USB.
Beagle 5000 Line Cord
- AC Line Cord – Type B – US (+$0)
- AC Line Cord – Type F – EU (+$0)
- AC Line Cord – Type G – UK (+$0)
USB Capture and Analysis
- Non-intrusively monitor USB 3.0 and USB 2.0 simultaneously (up to 5 Gbps)
- Real-time capture and display – view USB packets and USB-specific error code values in real time
- Real-time USB class-level decoding with the Data Center Software
- 4 GB on-board buffer with live data streaming to the analysis computer
- 2 ns timing resolution for USB 3.0 and 16.7 ns for USB 2.0
- Low-level error detection – Invalid PID, bad CRC, timeout, frame sequence errors, state transition errors, and more
- Hardware-based USB 2.0 and 3.0 packet suppression
- Automatic support for data scrambling, spread spectrum clocking, polarity inversion, and receiver detection
Advanced Debugging
- USB 2.0 and USB 3.0 Match/Action advanced triggers including state-based and flexible trigger conditions
- USB 2.0 advanced triggers – includes up to 8 independent states and 6 matches per state
- USB 3.0 advanced triggers – includes up to 8 independent states and 3 matches per stream per state
- Multiple digital inputs and outputs for synchronizing with USB 2.0 and USB 3.0 external devices
- Detection of USB 3.0 link training, USB 3.0 link operating states (LTSSM) and all USB 2.0/1.1/1.0 bus states
- Multi-analyzer synchronization for monitoring traffic across USB hubs
- USB 3.0 downlink enables longer captures

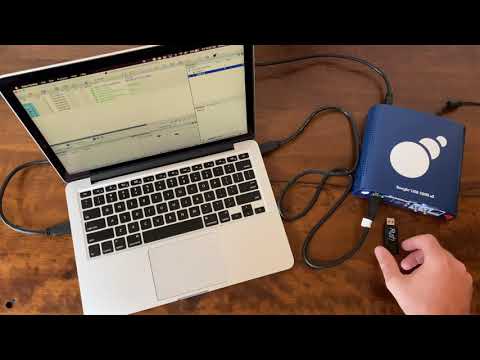

Debug USB 3.0 with the Beagle USB 5000 v2 protocol analyzer
Perform real-time analysis of USB 3.0 or USB 2.0 data between USB devices.
How to Set Advanced Triggers on the Beagle USB 5000 v2 SuperSpeed
Learn how to set advanced triggers to capture USB 3.0 data with Match/Action configuration.
| Total Phase USB Protocol Analyzers |
Beagle USB 12 Protocol Analyzer | Beagle USB 480 Protocol Analyzer |
Beagle USB 480 Power Protocol Analyzer – Ultimate Edition | Beagle USB 5000 v2 SuperSpeed Protocol Analyzer – Ultimate Edition |
| Part Number | TP320221 | TP320510 | TP323610 | TP322610 |
| Monitoring Capability | ||||
|---|---|---|---|---|
| USB Capture Rates | <12 Mbps | <480 Mbps | <480 Mbps | <5000 Mbps |
| USB 3.0 and 2.0 Simultaneous Monitoring |
N/A | N/A | N/A | ✔ |
| USB 2.0 Downlink | ✔ | ✔ | ✔ | ✔ |
| USB 3.0 Downlink | N/A | N/A | N/A | ✔ |
| Real-Time Data Display & Analysis |
✔ | ✔ | ✔ | ✔ |
| Real-Time LTSSM Tracking |
N/A | N/A | N/A | ✔ |
| Real-Time Statistics |
✔ | ✔ | ✔ | ✔ |
| Memory – Standard On Board |
Host PC | 64 MB + Host PC |
256 MB + Host PC |
4 GB + Host PC |
| External Triggers | ||||
|---|---|---|---|---|
| Availability of External Triggers |
N/A | Input – Monitor Output – Trigger |
✔ | ✔ |
| Advanced Triggers | N/A | N/A | ✔ | ✔ |
| Sync | N/A | Basic | Basic | Advanced |
| USB 3.0 Advance State Machine |
N/A | N/A | N/A | ✔ |
| Other Features | ||||
|---|---|---|---|---|
| Current & Voltage Monitor | N/A | N/A | ✔ | N/A |
| Cross-Platform Support for Window, Linux, Mac OS X |
✔ | ✔ | ✔ | ✔ |
| Software GUI | ✔ | ✔ | ✔ | ✔ |
| Royalty-free API | ✔ | ✔ | ✔ | ✔ |
| Beagle USB 12 Protocol Analyzer | Beagle USB 480 Protocol Analyzer | Beagle USB 480 Power Protocol Analyzer | Ellisys USB Explorer 200 |
Ellisys USB Explorer 260 |
Lecroy USB Advisor |
Lecroy Mercury T2 |
|
|---|---|---|---|---|---|---|---|
| Base Price | $ | $$ | $$$ | $$ | $$$$$$ | $$$$$ | $$ |
| USB capture speed | full-/low-speed | high-/full-/low-speed | high-/full-/low-speed | high-/full-/low-speed | high-/full-/low-speed | high-/full-/low-speed | high-/full-/low-speed |
| Real-time display |  |
|
|
– | – | – | – |
| Real-time display of software-filtered data | |
|
|
– | – | – | – |
| Capture with only one host controller | |
|
|
– | – |  |
|
| Class-level decoding | Descriptors only | |
|
+$$$ | |
|
|
| Monitor VBUS current/voltage | – | – | |
– | – | – | – |
| Hardware filtering | – | |
|
|
|
|
|
| Hardware triggering | – | – | +$ | +$ | |
|
|
| Memory | Host PC | 64 MB + Host PC |
256 MB + Host PC |
32 MB + Host PC |
1 GB + Host PC |
128 MB | 256 MB |
| Windows, Linux, Mac OS X support | |
|
|
Windows only | Windows only | Windows only | Windows only |
| USB Powered | |
|
|
|
|
– | |
| Digital Input | – | 4 inputs |
4 inputs |
+ $$$ 1 input (shared with output) |
1 input (shared with output) |
1 input (shared with output) |
1 input (shared with output) |
| Digital Output | – | 4 outputs |
4 outputs |
+ $$$ 1 input (shared with input) |
1 input (shared with input) |
1 output (shared with input) |
1 output (shared with input) |
| Software API | C, C++, C#, LabView, Python, VB6, VB.Net |
C, C++, C#, Python, VB6, VB.Net |
C, C++, C#, Python, VB6, VB.Net |
+ $$$ C++ only |
C++ only |
COM, DCOM |
+$$ WSH, VBScript, and C++, DCOM |
| Dimensions | L: 91 mm W: 57 mm H: 22 mm |
L: 112 mm W: 66 mm H: 23 mm |
L: 114 mm W: 70 mm H: 26 mm |
L: 120 mm W: 150 mm H: 65 mm |
L: 120 mm W: 150 mm H: 65 mm |
L: 213 mm W: 234 mm H: 64 mm |
L: 90 mm W: 80 mm H: 24 mm |
| Weight | 65 g | 96 g | 97.5 g | 750 g | 950 g | 1300 g | 158 g |
| Volume | 114 cm3 | 170 cm3 | 170 cm3 | 1170 cm3 | 1170 cm3 | 3190 cm3 | 173 cm3 |
| Base Price | $ | $$ | $$$ | $$ | $$$$$$ | $$$$$ | $$ |
| Final Price | $ | $$ | $$$ | $$$$$ † | $$$$$$ | $$$$$$$ | $$$ |
† This is the price of the Ellisys USB Explorer 200 Professional bundle which includes the extra features listed above as additional costs.
(*) All competing products were researched from the websites and specification notes of their respective companies. Features and prices may have changed since this comparison was made. Please refer to the respective product websites and datasheets before making a final decision.
All product and company names mentioned on this page may be trademarks of their respective owners. Total Phase bears no affiliation with any of these other products and companies.
Tech Specs
USB Monitoring
- SuperSpeed USB 3.0, 5 Gbps
- High Speed, 480 Mbps
- Full Speed, 12 Mbps
- Low Speed, 1.5 Mbps
Target Device Port
- USB 3.0 Type-A receptacle
Target Host Port
- USB 3.0 Type-B receptacle
Analysis Port (connects to PC):
- USB 3.0 Type-B receptacle
- Bus Powered
Cross Analyzer Sync Ports
- 2 HDMI connectors: 1 input, 1 output
USB 3.0 Digital I/O Port
- 2 SMA connectors:1 input, 1 output
USB 2.0 Digital I/O Port
- Mini-DIN 9 connector: 4 inputs, 4 outputs, 1 ground
- Digital inputs are rated for 3.3 V and max 30 MHz
- Digital outputs are rated for 3.3 V and 10 mA
Impedance
- 50 OHM Digital I/O are rated for 1.8V and 12
On-Board Memory Buffer
- 4 GB
Power Supply
- 100-240V 50/60Hz AC – adapter included
Operating Temperature
- 10 to 35 o C (50 to 95 o F)
Front Panel
- Analyzer Power, Target Power, USB 3.0 RxTerm Host and Device, USB 3.0 Activity Host and Device, USB 2.0 Activity Device, Capture, Trigger
Rear Panel
- Power Switch, Analysis PC USB Port, DC Power: max 25W
Hardware
- Beagle USB 5000 v2 SuperSpeed Protocol Analyzer – Ultimate Edition
- 6 ft USB-A to USB-B Cable
- 1 ft USB-A to USB-B Cable
- 1.5 ft Mini-DIN9 Digital I/O Cable
- AC Adapter and Cable
- Two Year Warranty
Software (web downloads)
- Data Center Software
- Beagle Software API
- Beagle LabVIEW Driver
- USB Drivers
- Linux USB Hot Plug Configuration files
Minimum Hardware Requirements
- Intel or AMD processor operating at 2 GHz or faster
- 1 GB physical RAM (32-bit) or 2 GB RAM (64-bit)
- 2 GB or more available hard disk space
- Full-speed USB port
- VGA capable of 1024-x768 or higher screen resolution
- Internet access is helpful
Available Software
- Data Center Software
- Beagle Software API
- Beagle LabVIEW Driver
Required Software (Windows & Linux)
- USB Drivers
PC Requirements & Supported Operating Systems
- Windows: 7, 8, 8.1, 10
- Linux: Red Hat, SuSE, Ubuntu, Fedora
- Mac OS X: 10.7 – 10.14
Dimensions and Weight
- (W x D x L) 16 x 15.4 x 4.7 cm (6.3″ x 6.1″ x 1.8″)
- 900 g (1.9 lbs)
Quality
- CE
- RoHS
- One Year Warranty
- Manufacturing
- ISO 9001
- ISO 13485
- AS9100C
- ITAR
