S.M.A.R.T. SSD Tester
CTS-HI36
The S.M.A.R.T. SSD Tester is an all-in-one SSD testing solution designed to streamline manufacturing, quality assurance, and service workflows. Supporting S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) health diagnostics, firmware management, and production testing, it provides a flexible platform for PCIe NVMe and SATA SSDs. Available in Standalone and PC Link configurations, it helps improve testing efficiency, data integrity, and operational consistency.
Available Solutions
✓ Standalone Solution – No external PC required for operation
✓ PC Link Solution – Centralized control of multiple SSD testers from a single PC
Key Features
- PCIe NVMe & SATA SSD Support
- S.M.A.R.T. Health Check
- Firmware Programming
- Intelligent Data Duplication
Why Choose
S.M.A.R.T. SSD Tester?
Standalone Operation:
Standalone operation with no PC required. Intuitive design minimizes training time, reduces downtime, and improves productivity.
Intuitive User Interface:
22-inch touchscreen with an intuitive graphical user interface (GUI) for quick navigation, simplified operation, and an enhanced user experience.
SSD Health & Firmware Management:
Supports up to 37 SSDs simultaneously for health checks or firmware updates, with full compatibility for both PCIe NVMe and SATA SSDs.
Advanced Duplication & Eraser:
Auto-detects M.2 and SATA interfaces, enabling simultaneous duplication or firmware updates across all SSDs.
NVMe
SATA
Supported Devices
M.2
M.2
2.5″ HDD
2.5″ SSD
Supported
Devices
NVMe
M.2
M.2
SATA
2.5″ HDD
2.5″ SSD
Features
Impeccable High Speed
Capable of copying at 24GB/min. on all HDDs simultaneously, without any speed degradation as the number of targets increases, making it ideal for high-volume manufacturing applications.

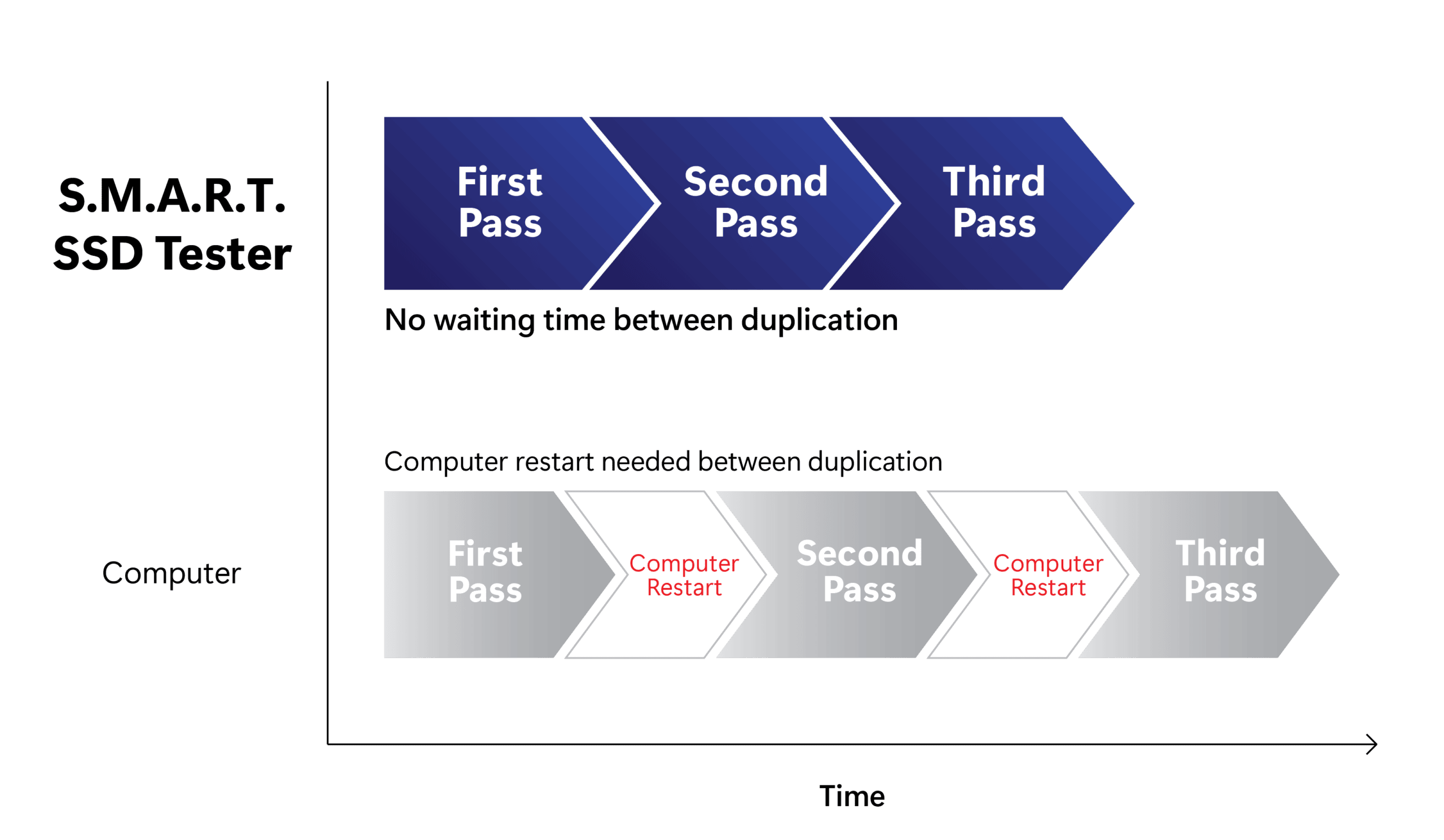

No waiting time required for duplication
Each duplication pass begins immediately after completion, with no waiting or system restart required.

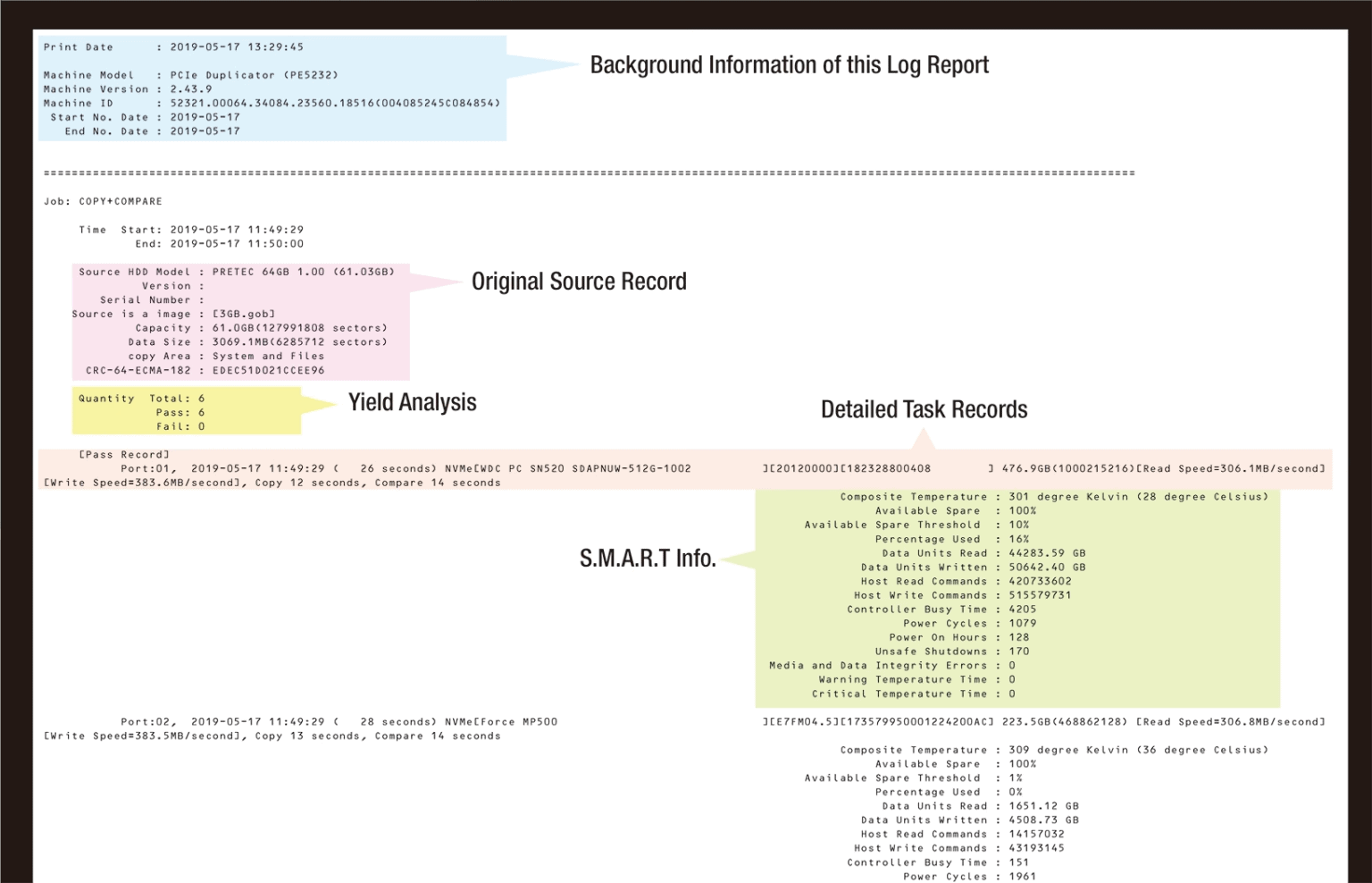

Event Log Report
Features a unique mechanism that prevents alteration of Event Log Reports, ensuring complete records of operation results and device information for every duplication task. This provides a valuable resource for production management, traceability, and analysis.

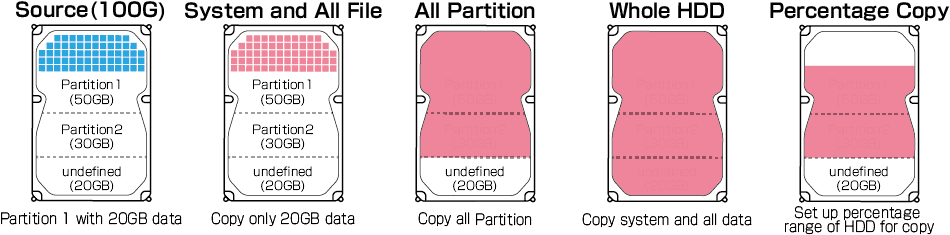

Intelligent Duplication Modes
Offers multiple duplication modes, allowing users to select the most suitable option based on their application requirements.
*Blue section represents the source data, red section shows the data being duplicated.
Duplication speed is determined by the capabilities of the hard drive’s controller.
Sanitization Methods
Dual data verification: Compare + CRC
The system supports both bit-for-bit comparison and CRC verification using the international CRC standard to ensure data integrity. CRC value comparison provides a quick and reliable way to confirm that the duplicated data is an exact copy of the source.
Automatic Slow Device Rejection
Supports configurable minimum write speed thresholds to detect and eliminate slow-performing devices that could delay or interrupt duplication and sanitization operations.

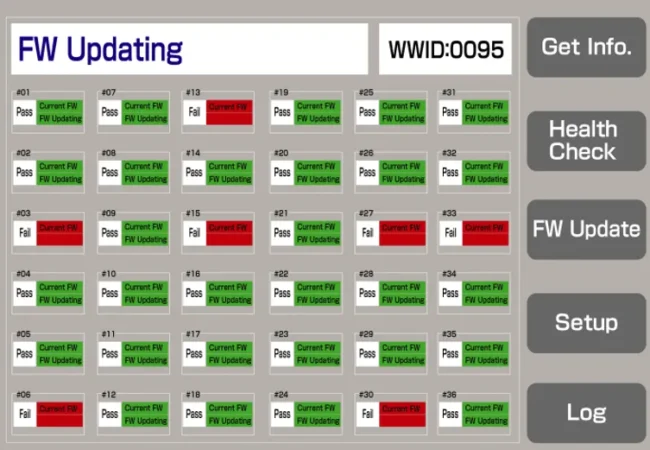

Firmware

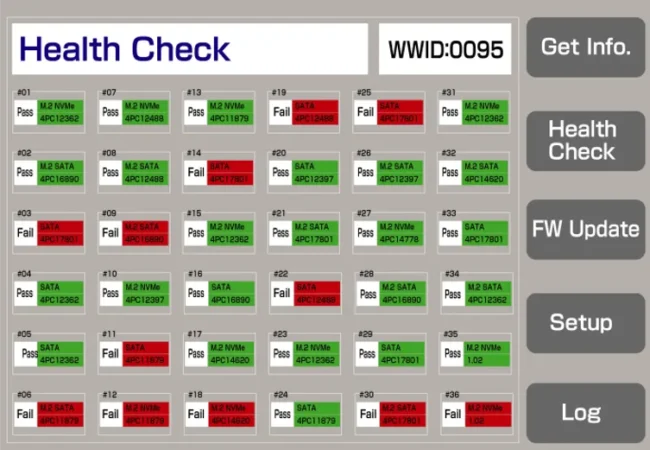

Health Check
Integrated Firmware & Health Management
Built-in firmware update and health check functions provide a convenient and efficient solution for managing and maintaining multiple SSDs simultaneously.
| Model | CTS-HI36 | CTS-HI04 | CTS-SE4M | CTS-SE4S |
|---|---|---|---|---|
| Ports | 37 | 4 | 4 | 4 |
| Interfaces | M.2+SATA | M.2+SATA | M.2 | SATA |
| Main Function |
|
|
Test | Test |
| Screen | 15.5” Touch Screen | 15.5” Touch Screen | 10.1” Touch Screen | 10.1” Touch Screen |
| OS | Windows IPC | Windows IPC | Raspberry Pi | Raspberry Pi |
| Model | CTS-HI36 | CTS-HI04 | CTS-SE4M | CTS-SE4S |
|---|---|---|---|---|
| Ports | 37 | 4 | 4 | 4 |
| Interfaces | M.2+SATA | M.2+SATA | M.2 | SATA |
| Main Function |
|
|
Test | Test |
| Screen | 15.5” Touch Screen | 15.5” Touch Screen | 10.1” Touch Screen | 10.1” Touch Screen |
| OS | Windows IPC | Windows IPC | Raspberry Pi | Raspberry Pi |
| Model | CTS-PH6I | CTS-PE5A |
|---|---|---|
| Ports | 6 | 6 |
| Interfaces | M.2+SATA | M.2+SATA |
| Main Function |
|
|
| Daisy Chain | No | Yes |
| Speed | 24GB/min | 24GB/min |
| Model | CTS-PH6I | CTS-PE5A |
|---|---|---|
| Ports | 6 | 6 |
| Interfaces | M.2+SATA | M.2+SATA |
| Main Function |
|
|
| Daisy Chain | No | Yes |
| Speed | 24GB/min | 24GB/min |
Models
Standalone Solution
Standalone SSD tester designed for efficient health checks, firmware updates, and drive diagnostics without requiring an external PC.

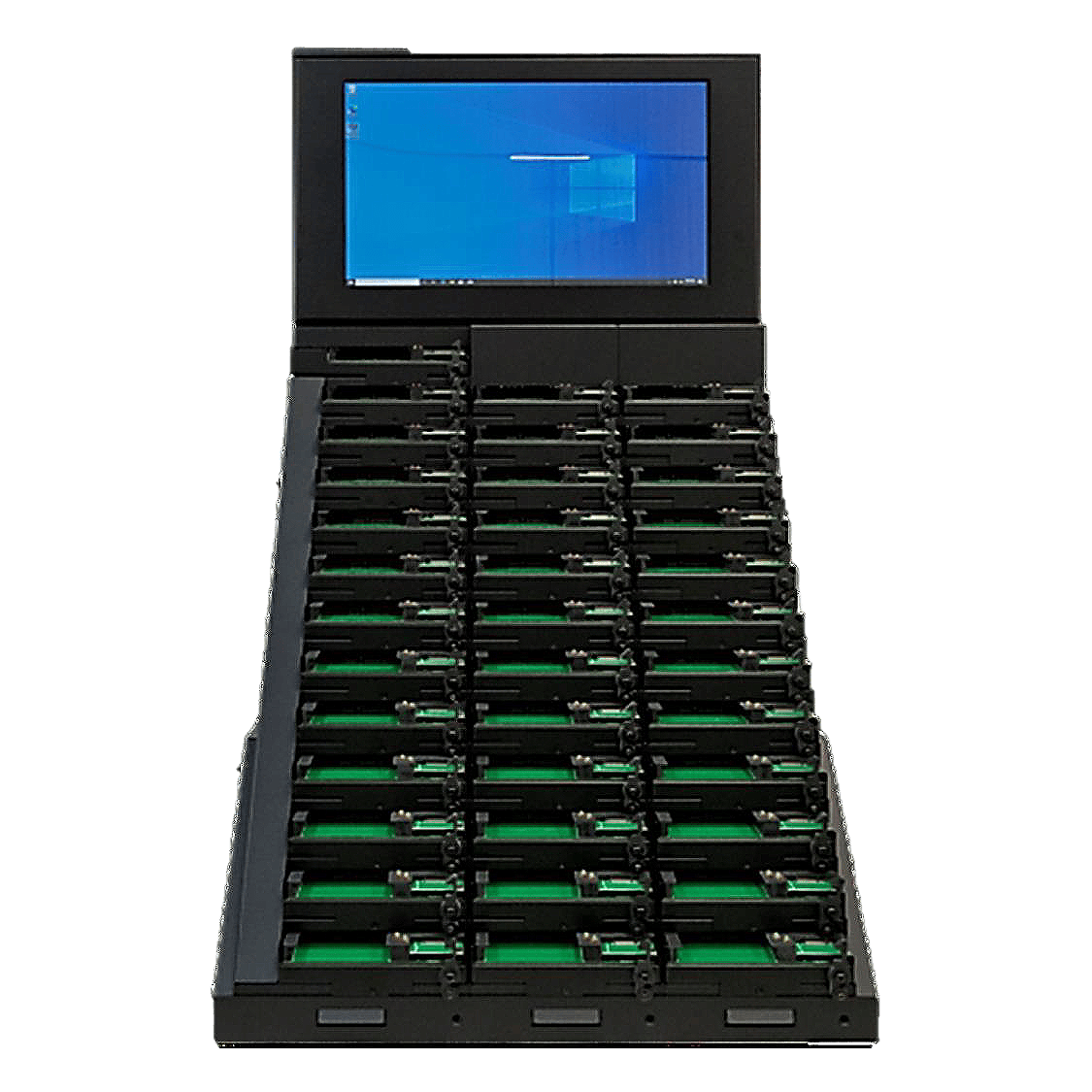

37 Ports S.M.A.R.T. SSD Tester
CTS-HI36
4 Ports S.M.A.R.T. SSD Tester
CTS-HI04
| Model | CTS-HI36 | CTS-HI04 | CTS-SE4M | CTS-SE4S |
|---|---|---|---|---|
| Ports | 37 | 4 | 4 | 4 |
| Interfaces | M.2+SATA | M.2+SATA | M.2 | SATA |
| Main Function |
|
|
Test | Test |
| Screen | 15.5” Touch Screen | 15.5” Touch Screen | 10.1” Touch Screen | 10.1” Touch Screen |
| OS | Windows IPC | Windows IPC | Raspberry Pi | Raspberry Pi |
Models
PC Link Solution
PC-based SSD testing solution for S.M.A.R.T. health checks, firmware management, and SSD diagnostics with scalable deployment for PCIe NVMe and SATA SSDs.

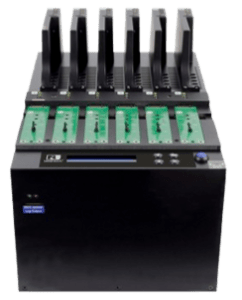

Individual PC Link SSD Tester
CTS-PH6I

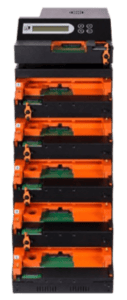

Scalable PC Link SSD Tester
CTS-PE5A
| Model | CTS-PH6I | CTS-PE5A |
|---|---|---|
| Ports | 6 | 6 |
| Interfaces | M.2+SATA | M.2+SATA |
| Main Function |
|
|
| Daisy Chain | No | Yes |
| Speed | 24GB/min | 24GB/min |
