Saleae Logic 8
SAL-00111

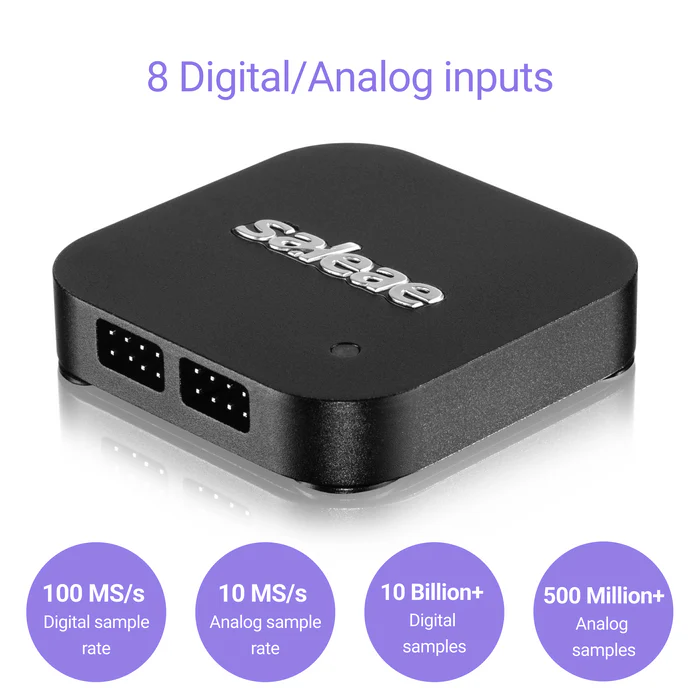

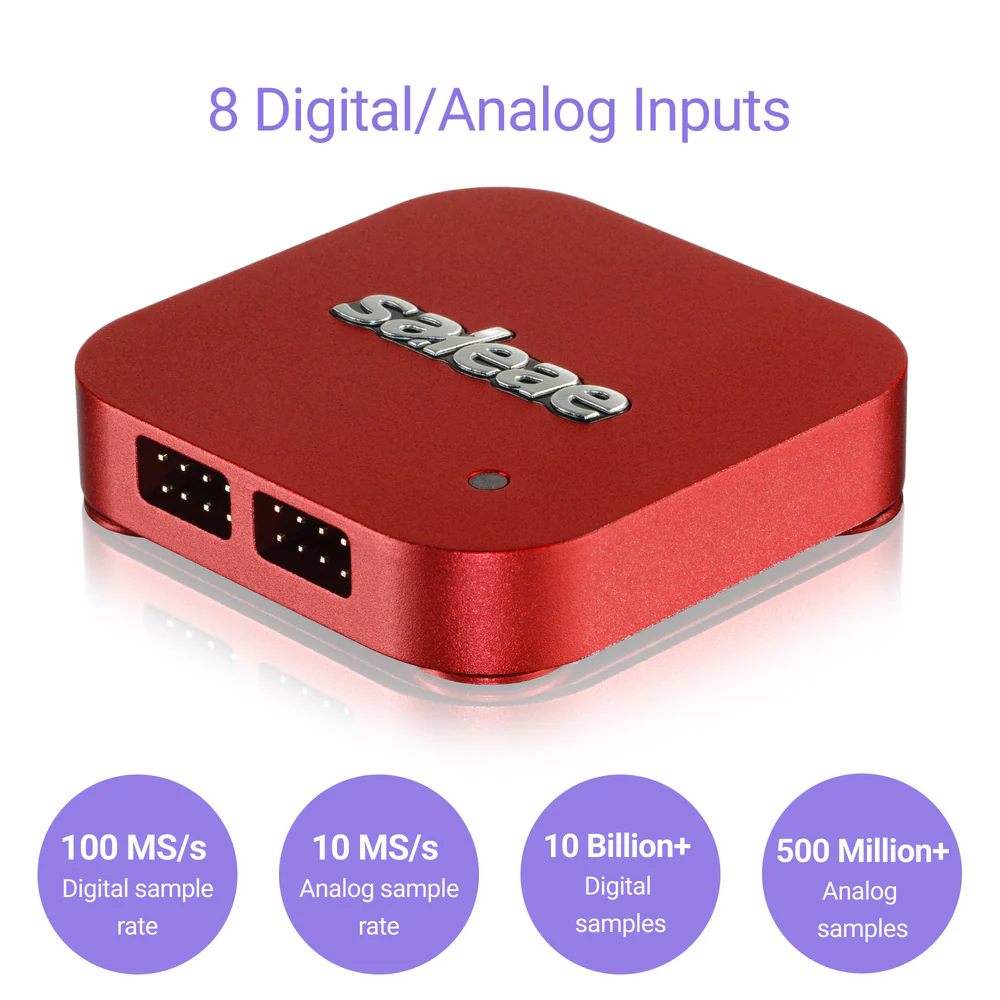

The Saleae Logic 8 (SAL-00111) is a compact, USB-powered logic analyzer designed for capturing and analyzing digital signals with precision and ease. Featuring 8 digital input channels, Logic 8 supports sample rates of up to 100 MS/s, making it well-suited for debugging embedded systems, monitoring serial protocols, and troubleshooting digital communication. It integrates seamlessly with Saleae’s intuitive cross-platform software, which offers advanced features such as protocol decoding, triggering, timing analysis, and real-time visualization.
The Logic 8 also includes analog sampling capabilities, using a 12-bit ADC with sampling up to 10 MS/s and a 1 MHz analog bandwidth—ideal for observing voltage levels and waveform shapes alongside digital events. Compact, rugged, and easy to deploy, the Logic 8 is perfect for developers needing reliable, affordable signal insight in lab or field environments.
| Logic Pro 16 | |
|---|---|
| Inputs | |
| Multi-Use (A/D/Both) | 8 |
| Input Resistance | 1 MΩ |
| Input Capacitance | 10 pF |
| Input Protection | ± 25V |
| Digital | |
| Sample Rate (max) | 100 MS/s |
| Fastest Digital Signal | 25 MHz |
| Sample Depth (typical) | 10+ Billion |
| Supported Logic Levels | 1.8V – 5.5V |
| Works with RS-232, 422/3, 485 | Yes, directly |
| Threshold Voltages | .6V low / 1.2V high |
| Analog | |
| Sample Rate (max) | 10 MS/s |
| Bandwidth (-3dB) | 1 MHz |
| Number of bits | 10 bits |
| Input Voltage Range | 0 V to 5 V |
| Attenuation @ Nyquist | -50 dB or better |
| Channel-Channel Crosstalk | -50 dB or better |
| Included | |
| Test Lead Set | x2 |
| Test Clips 8-Pack | x2 |
| USB Cable and Carry Case | Yes |
| Physical | |
| Size | 2.1″ x 2.1″ x .46″ (53 x 53 x 12 mm) |
| Weight | 2.8 oz (60 g) |
| USB | |
| USB Type | USB 2.0 |
