Logic MSO 4 Channel 200MHz
Contacthings is Saleae Authorized distributor in Malaysia.

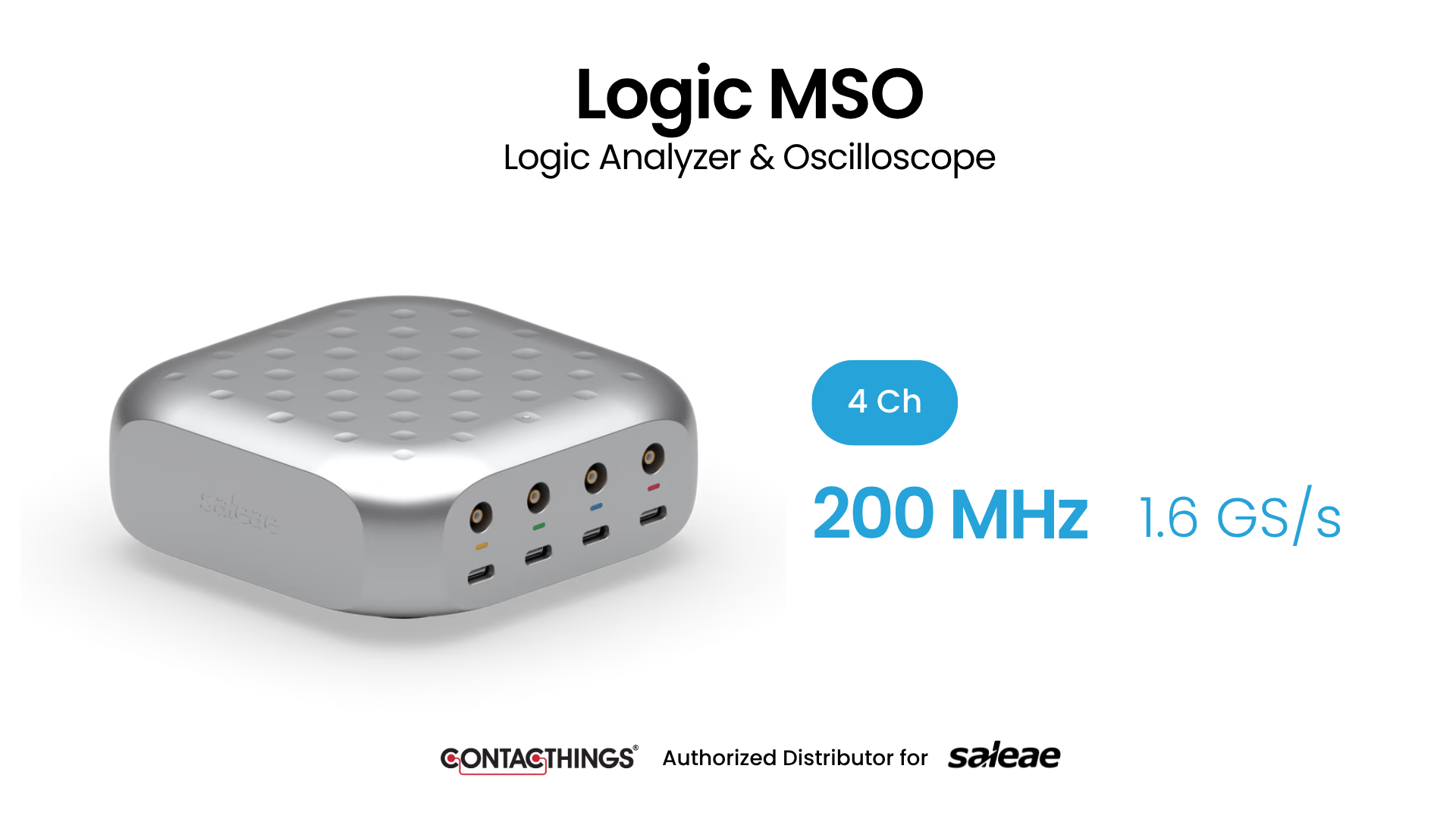

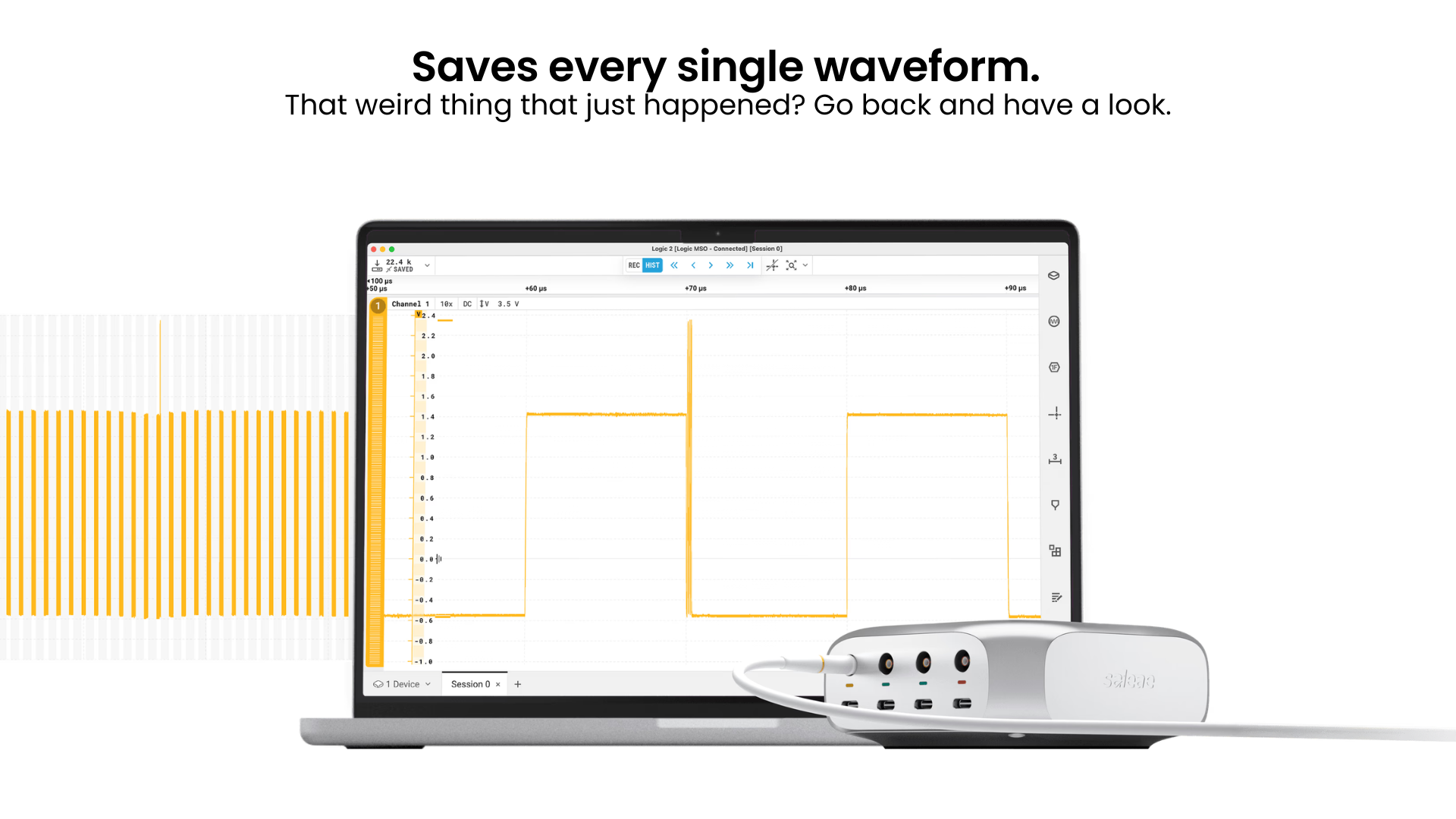

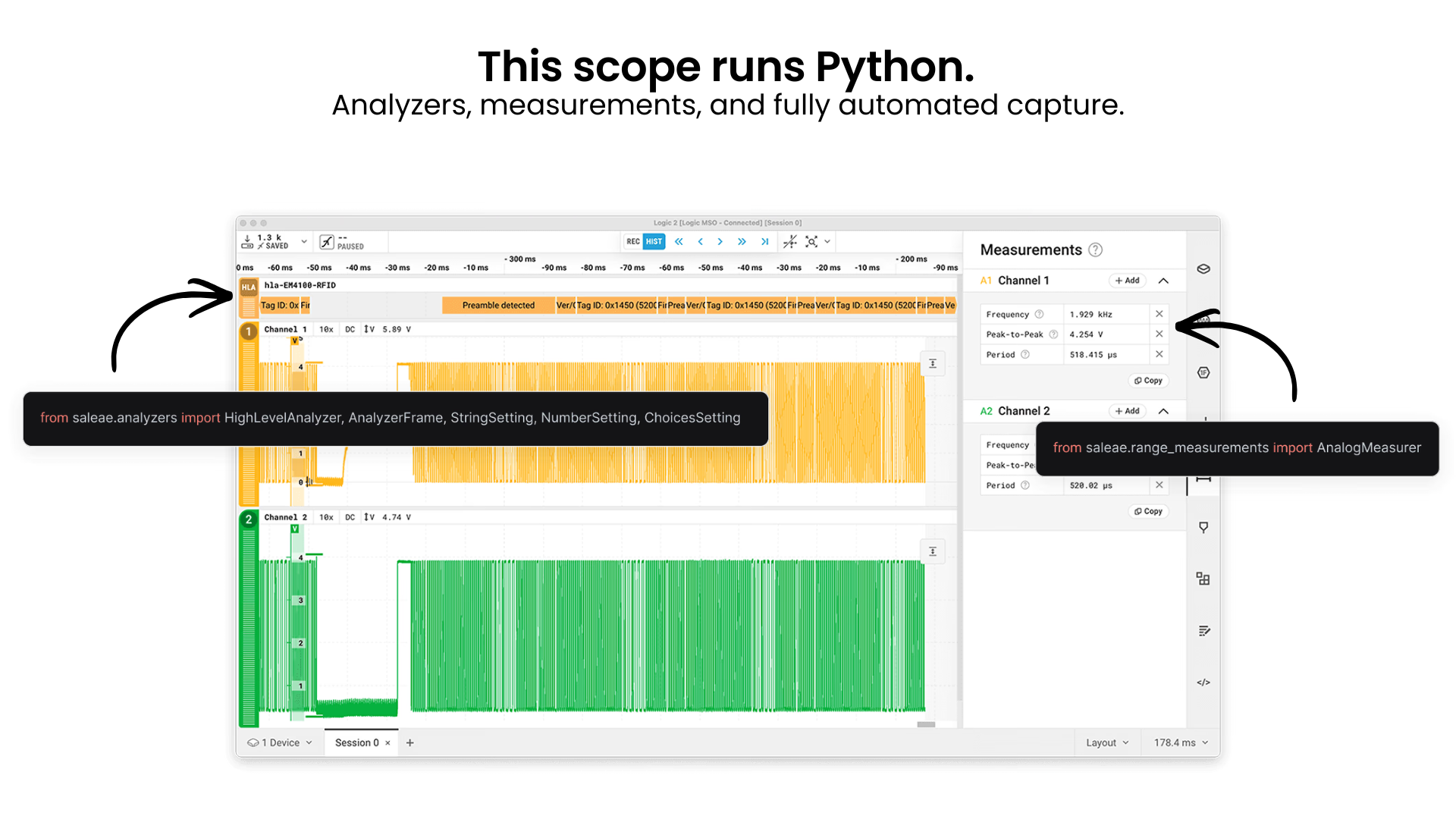

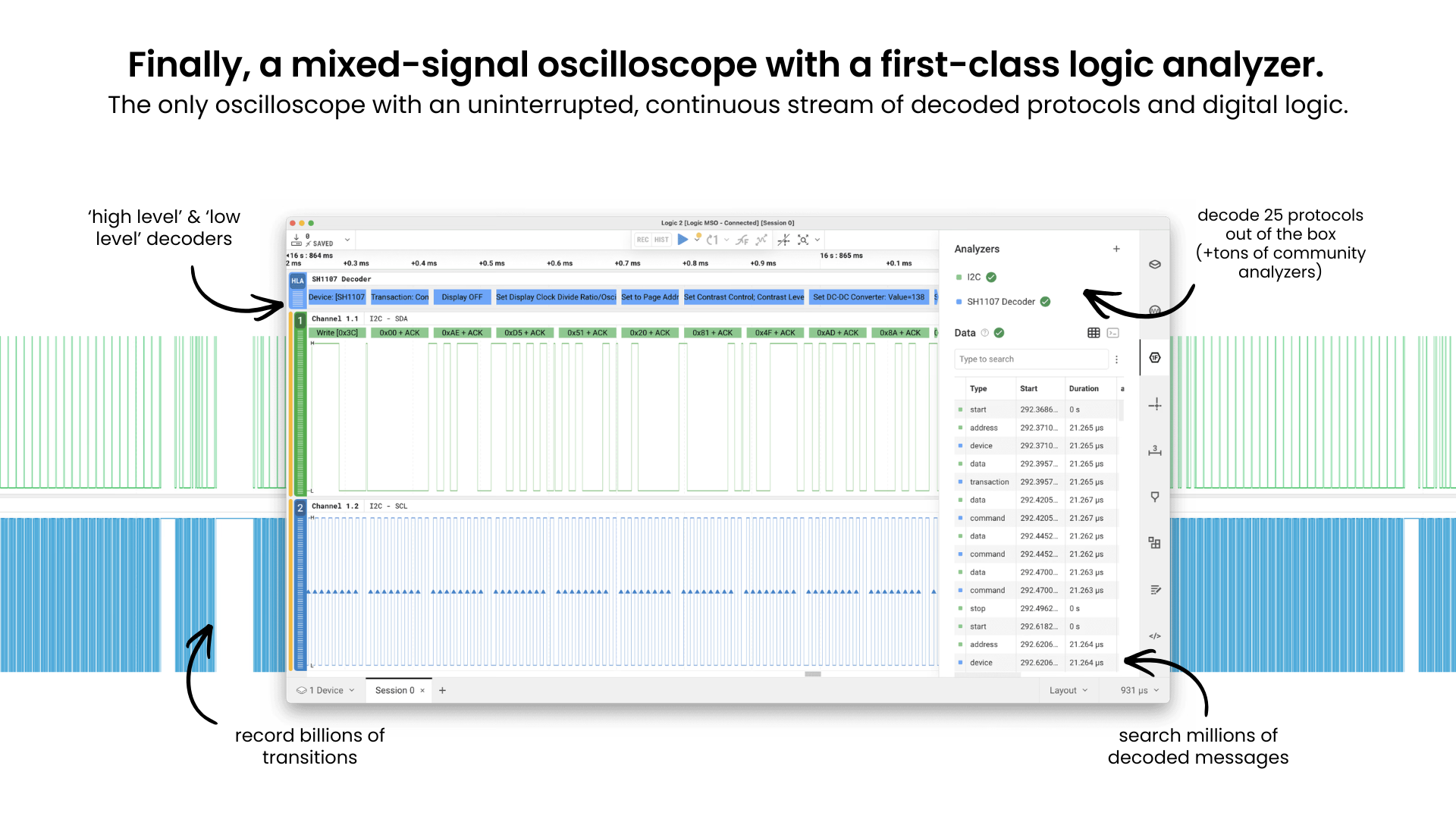

Saleae Logic MSO 4 Channel 200 MHz Mixed Signal Oscilloscope is designed for advanced digital and analog signal analysis, featuring high speed sampling and protocol decoding support for SPI, I2C, UART, CAN, and more. Ideal for embedded systems, FPGA, and hardware debugging, it works seamlessly with the intuitive Saleae Logic software for efficient troubleshooting and development.

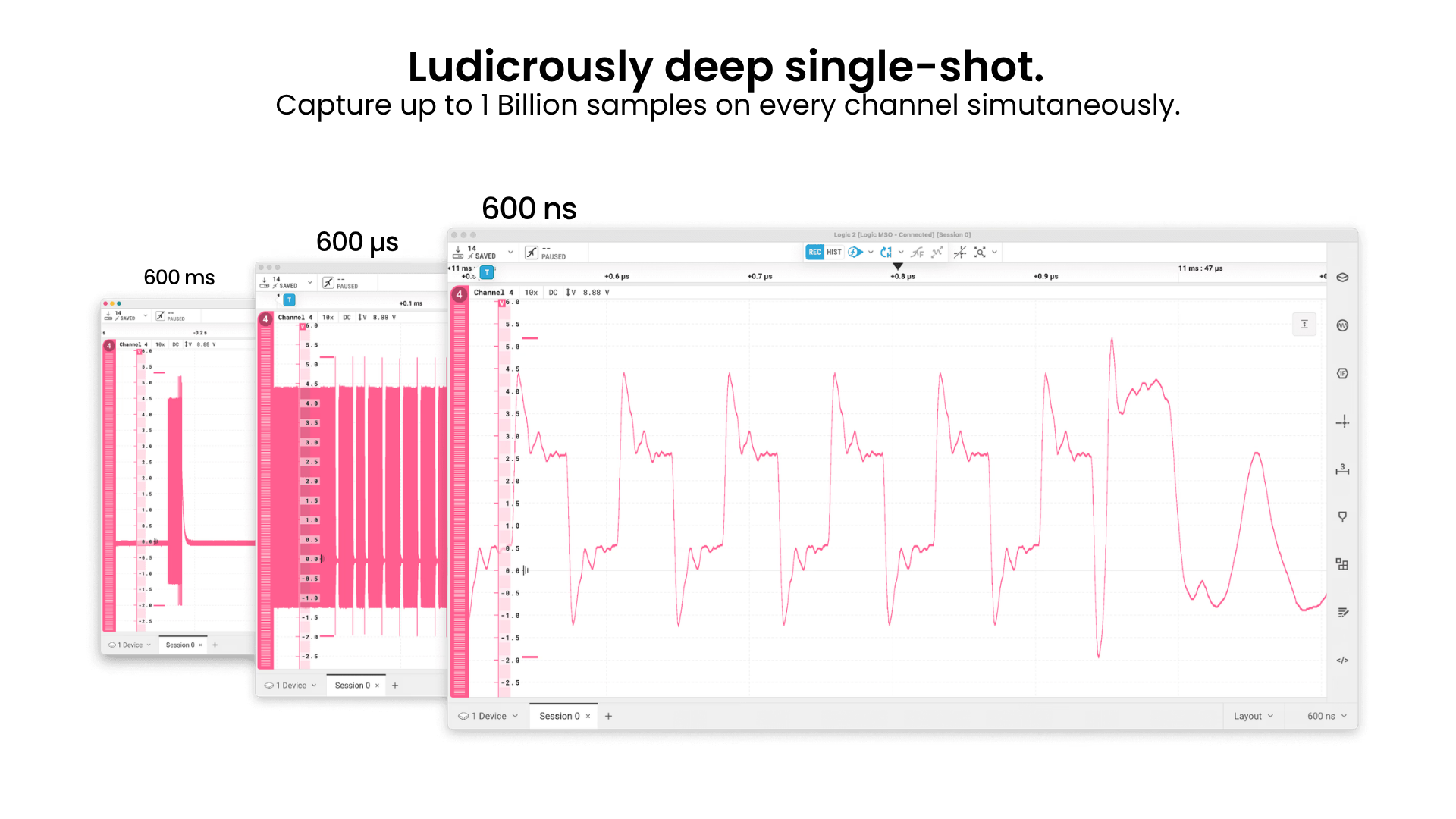

| General Specs | Standard | Pro |
|---|---|---|
| Oscilloscope Channels | 4 | |
| Oscilloscope Bandwidth | 200 MHz | |
| Oscilloscope Sampling Rate | 1.6 GS/s | |
| Oscilloscope Resolution | 9 bit | 12 bit |
| Oscilloscope Sample Depth | 100M Samples | 1B Samples |
| Digital Channels | 8 Expandable to 20 |
|
| Digital Sampling Rate | 1.2 GS/s | |
| Digital Sampling Depth | Billions of transitions | |
| Digital Transition Rate | 300M Transitions/s | |
| Vertical (Amplitude) | ||
|---|---|---|
| Input Impedance | 1 MΩ ‖ 16 pF nominal | |
| Full Scale Range | 10 mVpp to 60 Vpp | |
| DC Gain Accuracy | ±2% of full scale range | |
| DC Offset Accuracy | ±1% of full scale range ± 2mV | |
| DC Accuracy | DC gain accuracy ± DC offset accuracy | |
| Gain Stage | 0 dB to 38 dB in 2 dB steps | |
| DC Offset Stage | ±2.0V in 75µV steps | |
| Attenuation Stages | 1x (0 dB), 10x (10 dB), 100x (20 dB) | |
| Input Coupling | AC/DC Selectable | |
| AC Cutoff Frequency | 7 Hz nominal | |
| Bandwidth Limiting | 20 MHz selectable (nominal) | |
| Channel-to-Channel Isolation | ≥ 50 dB | |
| Maximum Input Voltage | ±30 V (derate at 20dB/decade after 20 MHz) |
|
| Horizontal (Time) | ||
|---|---|---|
| Time Base Range | 20 ns – Unlimited | |
| Time Base Steps | Continuous | |
| Calculated Rise Time | ≤ 1.75 ns | |
| Time Resolution | 0.63ns | |
| Timebase Accuracy | ± 25 ppm | |
| Timebase Aging | ±5 ppm at 25°C | |
| Analog Channel-Channel Skew | ≤ 1 ns | |
| Analog to Digital Skew | ≤ 0.83 ns ± 1 sample | |
| Digital Skew Channel-Channel | ≤ 0.83 ns (1 sample) | |
| Calibration | ||
|---|---|---|
| Conditions for Valid Calibration | After 30 min warmup at 23 ± 5 °C | |
| Calibration Interval | 1 year | |
| Warrantied Specifications | Bandwidth (3dB), DC Vertical Accuracy, Timebase Accuracy | |
| Warranty Period | 3 years from date of purchase | |
| Box Contents | ||
|---|---|---|
| Analog Probes |
4 Probes (Fixed 10:1) with Accessories
|
|
| Accessories Per Analog Probe | 1x Grabber Hook, 1x Alligator Clip Ground, 1x Spring Ground, 1x Ground Pin Receptacle, 1x Test Clip | |
| Probe Compensation Tools | 1x Pulse Generator, 1x Ceramic Screwdriver | |
| 3rd Party Probe Connectivity | 4x BNC to SMB Adapters | |
| Digital Probes | 2 with Accessories (add up to 3 more at any time) | |
| Accessories Per Digital Probe | 5-wire Harness, 5x Test Clips, 5x Pin-Pin Adapters, 2x Pin-Probe Adapters | |
| Data Connectivity | 1.8m USB-A to USB-C Cable, USB-A to USB-C Adapter | |
| Power Connectivity | 3.0m USB-C to USB-C Cable, 30W Regional USB-C Power Adapter | |
| Carrying Case | 1 Case (with room for all included accessories and additional digital probes) | |
|
Mechanical / Environmental |
||
|---|---|---|
| Pod Dimensions |
4.5″ × 4.5″ × 1.8″ (114 × 114 × 46 mm)
|
|
| Pod Weight | 3 lbs (1.36 kg) | |
| Case Dimensions | 14.5″ × 10.5″ × 3″ (369 × 267 × 76 mm) | |
| Total Case Weight | 6 lbs (2.72 kg) | |
| Operating Temperature | 0°C to +50°C | |
| Storage Temperature | -30°C to +70°C | |
| Power Requirements | USB-C PD 20V / 1.5A (30W) | |
