SV5C-CPRX MIPI C-PHY Analyzer
The SV5C-CPRX MIPI C-PHY Analyzer is a compact, high-performance tool designed to enable detailed characterization and validation of MIPI C-PHY transmitter ports. With support for any-rate operation across four C-PHY trios and operating at speeds up to 6.5 Gsps, it offers both analog waveform capture and comprehensive PHY-level analysis for burst-mode and continuous-mode data.
This analyzer supports advanced triggering options and performs high-level CSI-2 and DSI-2 protocol capture and analysis. Integrated into Introspect’s intuitive Pinetree software environment, the SV5C-CPRX provides powerful test automation capabilities for protocol timing analysis, packet error rate testing, and MIPI CTS validation. With Python-based scripting and full video frame extraction, it’s an ideal solution for developers working on embedded vision, imaging, and display systems.
- Any-rate operation across four C-PHY trios
- Analog waveform capture on received LP and HS data
- PHY-level burst-mode and continuous-mode analysis with advanced triggering options
- High-level CSI-2 and DSI-2 protocol capture and analysis
- State-of-the-art programming environment based on the highly intuitive Python language

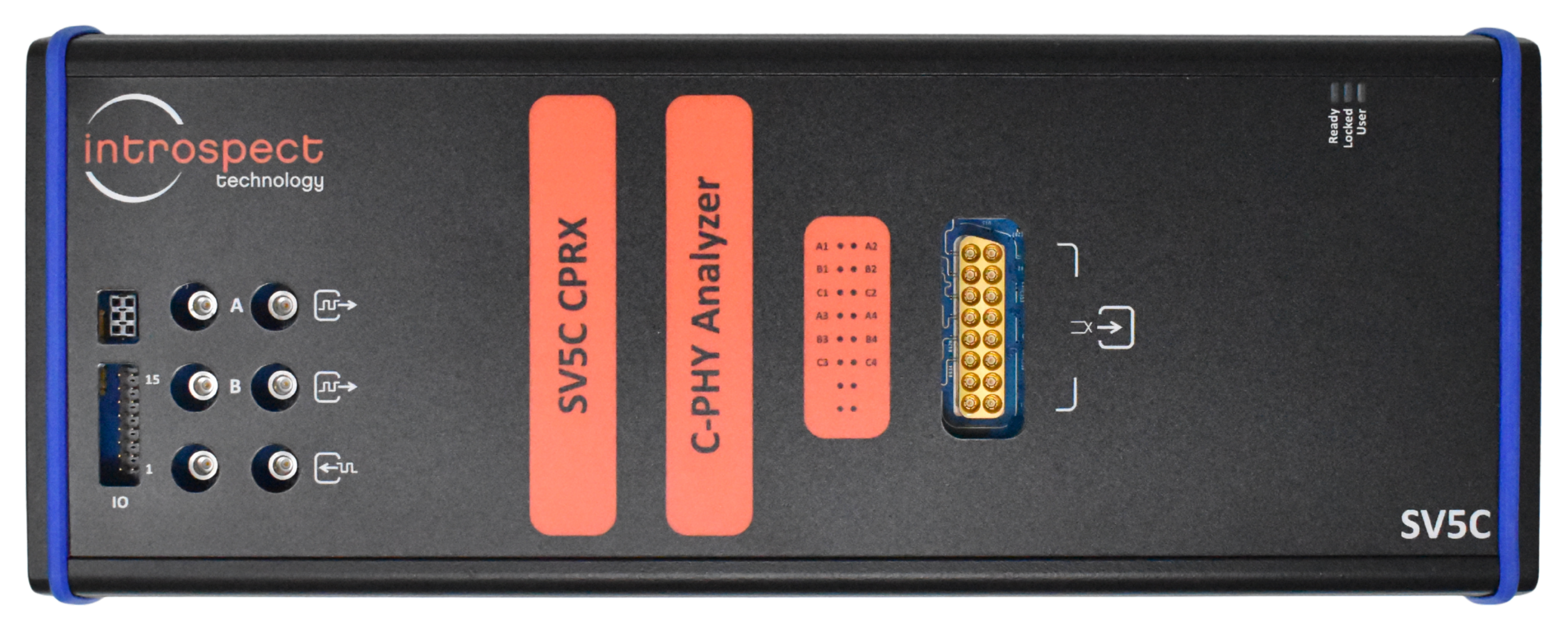

The SV5C-CPRX MIPI C-PHY Analyzer is an ultra-portable, high-performance instrument that enables characterization and validation of MIPI C-PHY transmitter ports.
The analyzer operates at up to 6.5 Gsps and combines analog signal measurement capabilities with sophisticated capture and compare modes for complete C-PHY packet analysis. The instrument operates using Introspect’s award-winning software environment, Pinetree, including a full suite of tools for DSI-2 and CSI-2 video frame extraction. The software enables test automation for packet error rate testing, protocol timing analysis and MIPI CTS.
