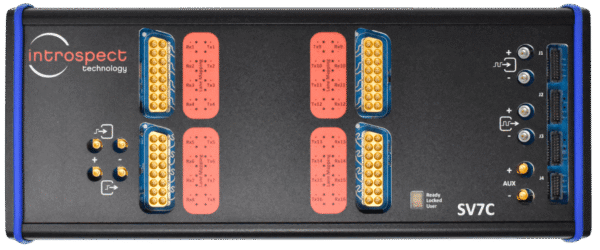

SV7C-eDP Embedded DisplayPort Generator
The SV7C-eDP Embedded DisplayPort Generator is a compact, high-performance instrument designed to generate traffic for Embedded DisplayPort (eDP) up to v2.0 and DisplayPort (DP) up to v2.1, supporting HBR and UHBR signaling. This all-in-one generator allows engineers to stress-test DisplayPort sink devices with fine-grained control over analog parameters, including per-lane voltage amplitude, common-mode voltage, jitter, sinusoidal voltage noise injection, and timing skew. With 8 GBytes of total pattern memory, it enables full video frame generation and protocol-level validation.
Leveraging Python scripting and Introspect’s award-winning ESP Software, the SV7C-eDP Generator streamlines both debugging and production-level validation workflows. Ideal for physical layer testing to full protocol validation, it integrates pattern generation, signal conditioning, and automation in a bench-friendly form factor. The system provides a powerful and efficient tool for validating receiver performance and ensuring compliance in high-speed embedded display applications.
- Supports Embedded DisplayPort (eDP) up to v2.0 and DisplayPort (DP) up to v2.1 in HBR and UHBR
- Unique features for stressing a DisplayPort sink device, including per-lane voltage amplitude, common-mode voltage control, jitter injection, sinusoidal voltage noise injection, and per-wire timing skew.
- An all‐in‐one system that enables the simplest bench environment for physical layer test to full protocol layer validation
- Full video frame generation with 8 GBytes of total pattern memory
- Leverages the full power of Python and award-winning Introspect ESP Software. Scripting capability is ideal for debug tasks and for full‐fledged production screening of devices and systems
The SV7C-eDP Embedded DisplayPort Generator is an ultra-portable, high-performance instrument capable of generating traffic for Embedded DisplayPort up to v2.0 and DisplayPort applications up to v2.1. The SV7C-eDP Generator provides analog parameter controls that enable DisplayPort receiver stress-testing and allow for deep insights into voltage and timing sensitivities of DisplayPort sink devices. The instrument operates with the award-winning Pinetree software environment which includes full pattern synthesis tools for generating test patterns and video frames for system-level test.
