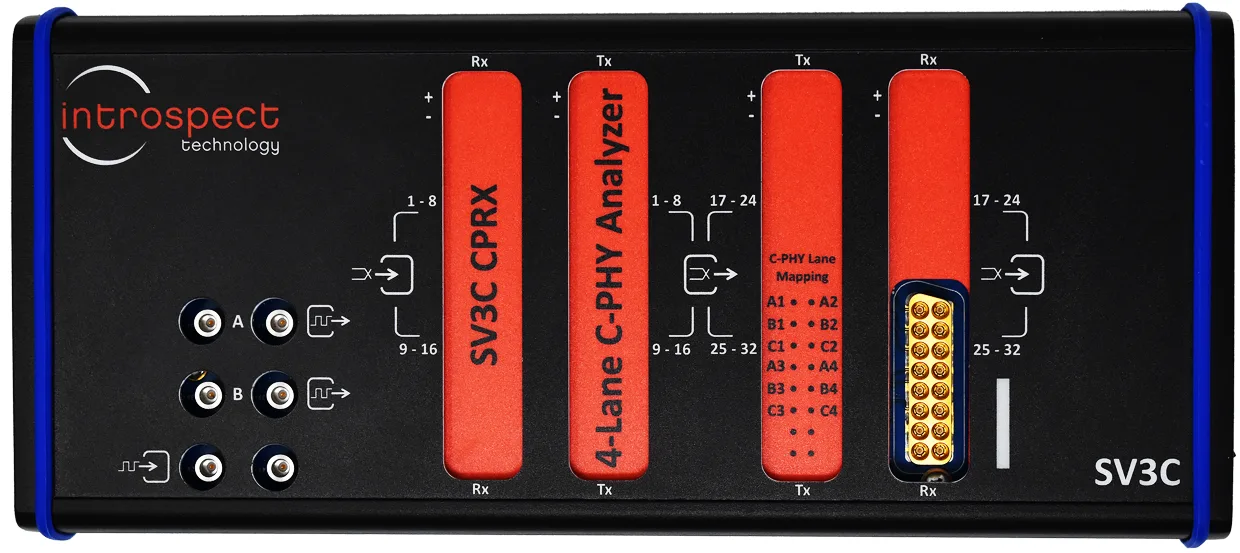

SV3C-CPRX MIPI C-PHY Analyzer
The SV3C-CPRX MIPI C-PHY Analyzer from Introspect Technology is an ultra-portable, high-performance instrument designed for comprehensive testing and validation of MIPI C-PHY transmitter ports. It supports any-rate operation across four simultaneous data lanes and features complete C-PHY decoding and demapping capabilities. With support for both burst-mode and continuous-mode analysis, the SV3C-CPRX enables multi-target BER testing at the wire, wire state, symbol, and data levels. High-level CSI-2 and DSI-2 protocol capture and analysis are seamlessly integrated.
The analyzer offers sophisticated capture and compares functions, including three-wire CDR and hardware-based demapping and decoding. It operates within Introspect’s powerful and intuitive Pinetree software environment, supporting fully automated testing workflows such as BER, protocol timing analysis, and MIPI CTS validation. The tool also includes advanced video frame extraction tools for in-depth packet and system-level testing, making it ideal for engineering teams developing complex C-PHY implementations.
- Any-rate operation across 4 simultaneous data lanes
- Complete C-PHY decode and demap capability
- Burst-mode and continuous mode analysis
- Multi-target BER (wire, wirestate, symbol, and data)
- High-level CSI-2 and DSI-2 protocol capture and analysis
- State-of-the-art programming environment based on the highly intuitive Python language
The SV3C-CPRX C-PHY Analyzer is an ultra-portable, high-performance instrument that provides the most comprehensive capabilities on the market for exercising and validating MIPI C-PHY transmitter ports.
Receiving traffic at a continuous range of data rates, the C-PHY Analyzer includes complete hardware demapping and decoding, three-wire C-PHY CDR, and offers sophisticated capture and compare modes. The C-PHY Analyzer operates using Introspect’s highly versatile software environment, Pinetree, allowing for automated transmitter tests such as BER, protocol timing and MIPI CTS. The software also includes a full suite of tools for DSI and CSI-2 video frame extraction for packet analysis and system level test.
