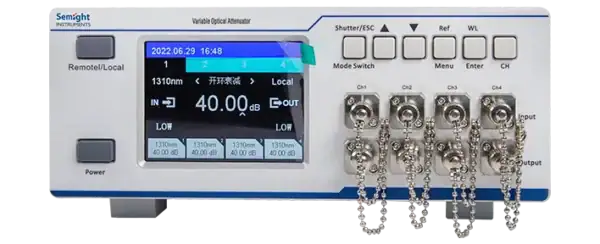

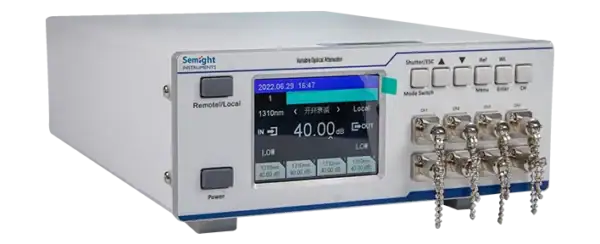

AT430X
AT430X
Single Mode Attenuator
AT430X series benchtop multi-channel attenuators are fiber optic instruments for optical transceiver and network integration test. High setting speed of attenuation and power as well as power measurement capability, combined with USB, and LAN interfaces provides increased throughput and operational efficiency to meet today’s challenges both in R&D and manufacturing.
AT430X series attenuators feature both attenuation mode and power control mode. With integrated input and output monitor power-meter, it is the unique tool to combine both attenuator and power-meter in one box.
Features
Power Monitoring Function
Supports input and output power monitoring, monitor power range: +10~-50 dBm
Parallel Testing
Supports multi-channel parallel measurement to improve test efficiency
Power Lock
Supports decay mode and power control mode, automatically keep the output power constant in power control mode
User-friendly Interface
Easy-to-use and intuitive graphical user interface
| AT4301/2/4/8 | |
| Connector Type | FC/UPC or FC/APC |
| Fiber type | 9/125 μm |
| Wavelength | 1250~1650 nm |
| Calibrated Wavelength | 1270/1290/1310/1330/1490/1550 nm |
| Attenuation range | 0~40 dB |
| Resolution | 0.1 dB |
| Accuracy | ±0.2 dB |
| Repeatability | <0.1 dB |
| Insertion loss | ≤1.2 dB |
| Power Monitor Range | +10~-50 dBm |
| Power-meter Accuracy | 3% |
| Return loss | Typ. 45 dB |
| Maximum safe input power | +23 dBm |
| Display | Default 3.5-inch TFT |
| Remote control | LAN, USB |
| Channel number | 1, 2，4 or 8 |
