4x25G Bit Error Ratio Tester

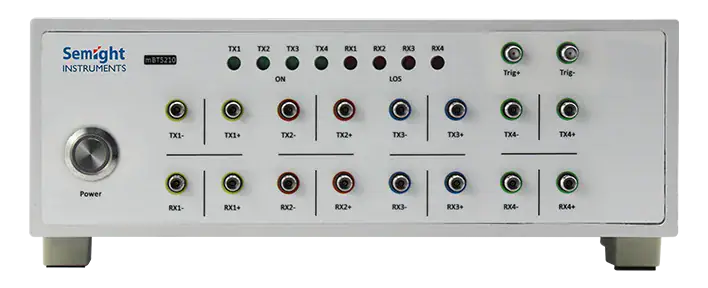

Semight MBT5210 is a High-performance Bit Error Ratio Tester with wide range data rate from 9.953~28.2 Gbps. MBT5210 provides high signal quality: fast rising edge, low inherent jitter; standard pseudo-random bit sequences (PRBS) can be generated functionally: 7, 9, 11, 15, 23, 31; The trigger clock supports up to half-rate clock (high speed) and other frequency division output (low speed); Built-in clock recovery; Supports switching input polarity; High repeatability and traceability to standard test results. It can be fully controlled by calling external API control (LabVIEW, C #) through the USB control interface.
Features
Multirate
9.953~28.2 Gbps and other standard rates
Parallel Efficiency
Four independent channels can be tested in parallel with high efficiency
High Performance
Fast rising edge, low inherent jitter
Rich Code Types
PRBS pattern, square wave and custom define pattern
Functions and Advantages
Good Signal at the Transmitter
High acceptance sensitivity<40 mV
| Data Output | |
| Type of output | Differential / single-ended |
| Modulation format | NRZ |
| Data patterns PRBS | 27-1, 29-1, 215-1, 223-1, 231-1, Square Wave, User Defined Pattern |
| Data rate | 9.953~28.2 Gbps |
| Frequency accuracy (typ.) | ±50 ppm |
| Output amplitude (differential) | 600~800 mVp-p |
| Rise Time(20 – 80%) | ＜16 ps |
| Fall time(20 – 80%) | ＜16 ps |
| Jitter | ＜515 fs |
| Connector | 2.92 mm female，50Ω |
Clock and trigger output：Support differential / single ended clock output, and the clock division ratio can be set
| Output Amplitude | ＞300 mV |
| Output Type | Differential, AC-coupled |
| Connector | 2.92 mm female，50 Ω |
Bit error detector
| Input type | Differential |
| Single ended | |
| Input impedance | 100Ω |
| Input amplitude | ＜1000mVpp |
| Sensitivity | ＜40mV |
| Terminal | AC – AC coupling |
| Data code type | 27-1, 29-1, 215-1, 223-1, 231-1 |
| Data rate | 9.953~28.2 Gbps |
| Input amplitude range (differential) | 40~1000 mV |
| Clock mode | Built-in clock recovery |
| Synchronization type | Auto Synchronization (level / phase) |
| Connector | 2.92 mm female, 50 Ω |
