The SF600Plus-G2U is a high speed universal programmer designed for both In System Programming (ISP) and standalone programming applications. Supporting MCU, FPGA, CPLD, SPI NOR Flash, SPI NAND Flash, and EEPROM devices, it enables efficient programming, testing, and production workflows. With USB and ATE port control, the SF600Plus-G2U can be easily integrated into automated manufacturing and in-line programming environments.
SF600Plus-G2U Feature
The SF600Plus-G2U is a high-speed ISP Universal Programmer designed specifically for In-System Programming (ISP/On-Board programming) and Stand-Alone programming modes, supporting MCU, FPGA, CPLD, SPI NOR Flash, SPI NAND Flash, and EEPROM. It enables In-Line programming for mass production through USB or ATE Port control, facilitating easy integration into production lines. In addition to being compatible with the original SPI programming, it also adds a dedicated on-board programming application for ISP, making it easy to apply to the In-Line ICT/FCT integrated programming and tester platform.
SF600Plus-G2U Highlights
- Supports IC Kinds:
MCU, FPGA CPLD, SPI NOR Flash, SPI NAND Flash, EEPROM - Multiple programming communication protocols:
SWD, JTAG, DAP, UART, I2C, CAN, LIN and more. - Sync/ Async Programming:
Supports both synchronous and asynchronous programming across multiple programmers and PCB boards. - Wide programming voltage:
Supports configurations ranging from a minimum of 1.2V to a maximum of 12V. - Customization:
Supports user-customized script execution for the programming process. - Wide usage scenarios:
Supports Project mode for stand-alone programming and provides ATE port for online production mode control in stand-alone mode.

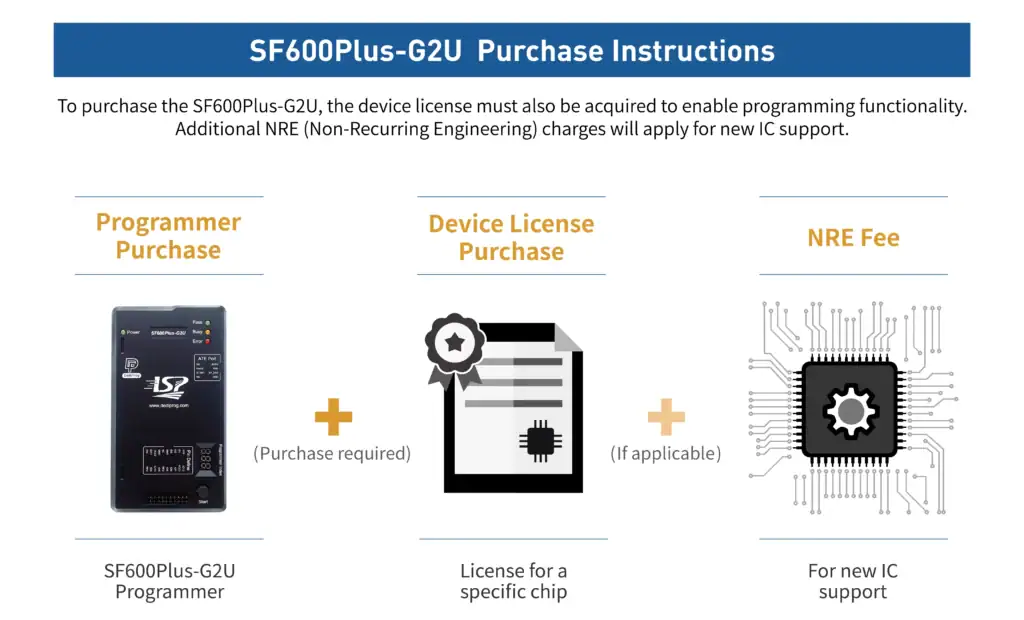

SF600Plus-G2U Purchase Instructions
Notice:
* The SF600Plus-G2U is fully compatible with the SPI Flash Programmer SF600plus-G2. For detailed specifications, please visit the SF600Plus-G2 page.

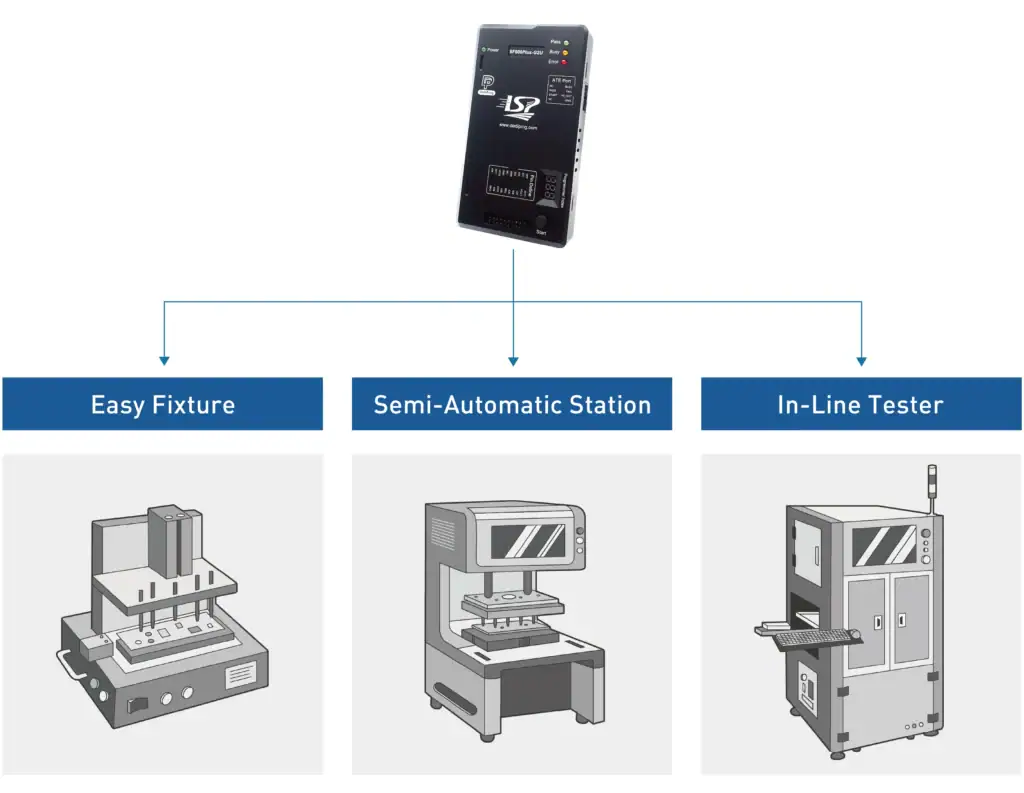

In-System Programming Application Scenarios
Hardware Specifications
| Item | Description |
| Architecture | High-Performance ARM and FPGA architecture |
| Embedded Memory | 4GB memory |
| PC Connection Interface | High-speed USB 2.0 TYPE-C, Ethernet Port |
| ATE Interface | Status and control IO signals for Start/Pass/Busy/Error signals of 5V TTL signals |
| Programming Interface | In-System Programming (ISP) / Off-line Mode (SPI supported socket adaptor only) |
| Supported IC Kinds | EEPROM, SPI NOR/NAND Flash, MCU, FPGA CPLD, and more. |
| Operation Interface | LED indicators display Power/Pass/Busy/Error status; Start button |
| VCC1 / VPP Range | 1.2V-5V / 5V-12V |
Software Specifications
| Item | Description |
| Operating Software | DPISP GUI / DPISP CLI |
| Operating System | Windows 8/8.1/10/11 |
| Support File Format | Binary, Intel Hex, Motorola, etc. |
| Programming Functions | Blank Check, Erase, Program, Verify, Engineering Mode, and Option Register Modify |
| Edit Script | Supports editing running scripts, suitable for On-Line production scenarios |
| Other Advantage | Convenient for users to carry out secondary development |
Control Port
Software Options
The SF600Plus-G2U USB software toolchain offers high flexibility and meets the highest requirements for engineering and production.
CLI Mode
Ideal for debugging or verification for engineers via the command line.
GUI Engineering Mode
Designed for electronics customers to program ICs by using finalized scripts.
GUI Production Mode
Perfect for mass production, available in both online and offline (stand-alone) modes.
Standard Package
- SF600Plus-G2U Programmer x 1
- USB 2.0 100cm Cable (A Male -C Male) x 1
- Power Adapter (Including US and EU plugs) x 1
- Pin 2×10 to 2×10 Cable x 1
- Pin 2×4 to 2×4 Cable x 1
- DPISP-CB-20-1 x1
- NuProgPlus Socket Bottom board x1
- Product Card (User manual and information QRcode) x 1
