EDSFF E1.S / E1.L CBB+CLB
SFF-TA-1006
EDSFF Signal Calibration Board

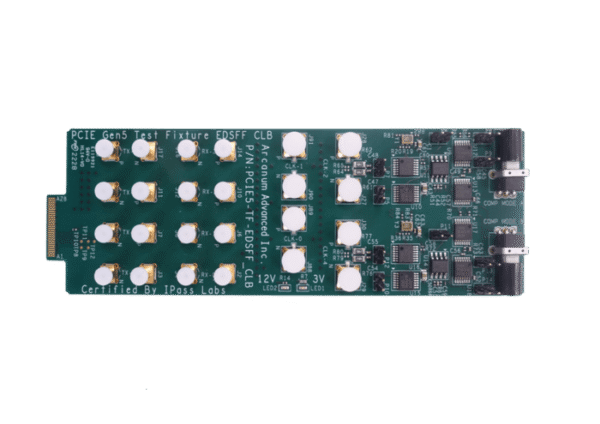

EDSFF E1.S / E1.L CBB+CLB Signal Integrity Board is designed for EDSFF (SFF-TA-1006 / SFF-TA-1007) physical layer conformance, providing precise validation and pre-compliance testing. It supports PCIe 5.0 at 32 GT/s and includes both CBB and CLB modules for accurate transmitter and receiver calibration. The board features MMPX connectors fully compatible with PCI-SIG CEM ISI boards, ensuring reliable signal routing, repeatable measurements, and seamless integration into existing compliance test setups. Ideal for high-speed interface testing, early-stage development, and signal integrity validation.
| Models | Part Number |
| EDSFF E1.S | SFF-TA-1006 |
| E1.L CBB+CLB | SFF-TA-1007 |
EDSFF E1.S / E1.L CBB+CLB Signal Integrity Board is high-performance test fixture for EDSFF (SFF-TA-1006, SFF-TA-1007) physical layer conformance, featuring:
- Signal Integrity Board for EDSFF(SFF-TA-1006,SFF-TA- 1007) Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), EDSFF CBB and CLB for both receivers and transmitters calibration.
- MMPX connectors are 100% compatible with PCI SIG CEM ISI board.
