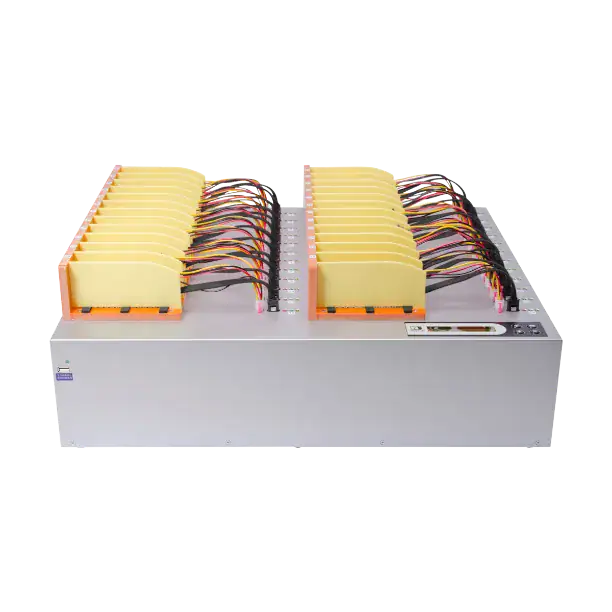

MT2400H High-speed Mirror Terabyte Series
MT2400H
1 to 23 SATA II (18GB/min) HDD/SSD Duplicator and Sanitizer
U-Reach MTH series is a professional SATA HDD/SSD duplicator, specially designed for high volume duplication. U-Reach adopted a unique multitasking technology that can simultaneously copy all HDD targets with a high transfer speed of 18GB per minute.
We guarantee the highest productivity without speed degradation, even as the number of targets increase. The MTH series SATA HDD/SSD duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode.
In addition, the MTH series SATA HDD/SSD duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase, which can fulfill different levels of HDD wiping security.
- Speed transfers of up to 18GB per minute.
- Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux(ext2/ext3/ext4/LVM), and Mac(HFS, HFS+, HFSX.)
- Data Sanitization: Full erase, DoD erase and Secure erase.
- Open platform design supports multi-interface HDD/SSD.
- Supports 2.5″, 3.5″ SATA HDD, SSD and IDE HDD via IDE_SATA convertor. (IDE to SATA adapter-TB1529 is optional)
- Real time PC monitoring.
- Log report management records all task details for enhanced production management.
Impeccable High Speed
U-Reach MT-H Series SATA HDD/SSD duplicator is capable of copying at 18GB/min. on all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.
Intelligent Duplication Modes
U-Reach MT-H HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.
Illustration of Copy Modes
The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive’s controller chip.
Sanitization Methods
Auto Rejection of Slow Devices
MT-H Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.
Double Data Verification: Compare + CRC Checksum
U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.
Skipping Bad Sectors
End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.
Optional Adapters Supported
Event Log Report
U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
Comparison Chart
