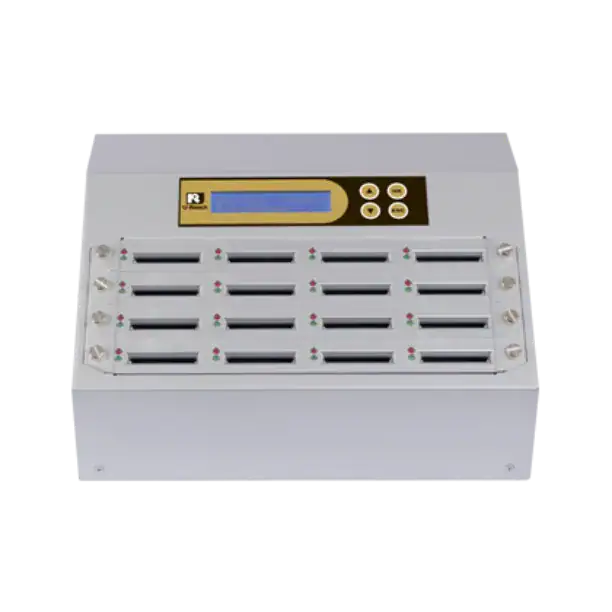

CF916G Intelligent 9 Golden Series

CF916G

1 to 15 CF Duplicator and Sanitizer

The most cutting-edge in duplication technology, our Intelligent 9 series CF duplicator is professional, standalone and efficient. It can duplicate a full range of CF cards starting from 7 and up to 119 targets. Speed and flexibility are key factors to satisfy customer needs. Simplicity, a PC or other software are not required; the CF duplicator provides a reliable, worry-free copy environment for users without the risk of virus infection. This CF duplicator series is integrated with a high-speed compare function to ensure data copy with 100% accuracy along with quick format capabilities. This will greatly help increase efficiency and production productivity.

The Intelligent 9 Golden series has added some more important functions – Event Log Report, Durability Test and Double Source Comparison. These functions were created after an inquiry by a professional to help them solve some critical issues during the duplication working process.

The Intelligent 9 CF duplicator is an economical solution for data copy and distribution via CF cards. It embeds smart and beneficial functions that provide an outstanding performance with quality that will save your time and money.

Feature

Feature

Standalone, no PC required to operate the duplicator.
Compatible with Compact Flash card, CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, CF6.0.
Peak transfer speeds up to 3.9GB/min. per port without speed degradation over thousand of ports.
Supports all types of data copy formats while executing bit-for-bit duplication.
Supports “Quick copy” for Linux (ext2/ext3/ext4), NTFS and FAT16/32.
Supports CFast device. (via adapter)
Can handle the largest CF card capacity on the market.
Supports log report for better production management.

Impeccable High Speed

U-Reach USB drive duplicator can copy up to 3.9 GB/min. on all devices, simultaneously and without any speed degradation as number of targets increase.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)

The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to “whole media copy” mode.

Whole Media

The duplicator copies from the initial sector to the end, bit-by-bit.
There are no format limitation in this mode.

tw SW50ZWxsaWdlbnQgQ29weSBPcHRpb24tQ0YtRU4 png

Quality Testing / Checking Functions

H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.

Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.

H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.

Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.

H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

3 9 png

Burn-in Test
Performs user-defined burn-in tests to flash devices from 30 minutes through 30 days to determine quality and longevity.

Double Source Comparison

Double source comparison can eliminate the chance of a duplication error caused by a worn source. Use the first port as a copying source and use the second port as a compare source. It can guarantee the highest reliability and 100% correctness of the duplication result.
