IT1500H IT-H Professional Series
IT1500H
1 to 15 SATA II (18GB/min) HDD/SSD Duplicator and Sanitizer
IT-H series is a professional SATA HDD/SSD duplicator, specially designed for high-volume duplication. U-Reach adopted a unique multitasking technology, it can simultaneously copy all targets with a high transfer speed of 18GB per minute.
We guarantee the highest productivity without speed degradation even as the number of targets increase. The IT series SATA HDD duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode.
In addition, the IT-H series SATA HDD duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase which can fulfill different levels of security for HDD wiping.
- Speed transfers of up to 18GB per minute.
- Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux(ext2/ext3/ext4/LVM), and Mac(HFS, HFS+, HFSX.)
- Data Sanitization: Full erase, DoD erase and Secure erase.
- Real time PC monitoring.
- Log report management records all task details for enhanced production management.
- Cable-free connection for easier HDD insert & remove.
Impeccable High Speed
U-Reach IT-H Series SATA HDD/SSD duplicator is capable of copying at 18GB/min. On all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.
Intelligent Duplication Modes
U-Reach IT-H HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.
Illustration of Copy Modes
The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive’s controller chip.
Sanitization Methods
High Compatibility
- Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
- Whole media copy mode supports all system and proprietary formats.
- Supports various brands.
- Designed to support 18TB+ capacities.
- Supports MBR and GPT partitioning.
Double Data Verification: Compare + CRC Checksum
U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.
Auto Rejection of Slow Devices
IT-H Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.
Skipping Bad Sectors
End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.
Cable Free Design
Easier HDD Insertion & Removal.
Swappable HDD Port Module: easy for replacement and maintenance.
Cable free connection on HDD: supports 1.8″/2.5″/3.5” SATA HDD and SSD.
Via Adaptor: 2.5″, 3.5” IDE HDD, mSATA SSD, micro SATA, eSATA, ZIF, iVDR interfaces are compatible.
Optional Adapters Supported
Event Log Report
U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.

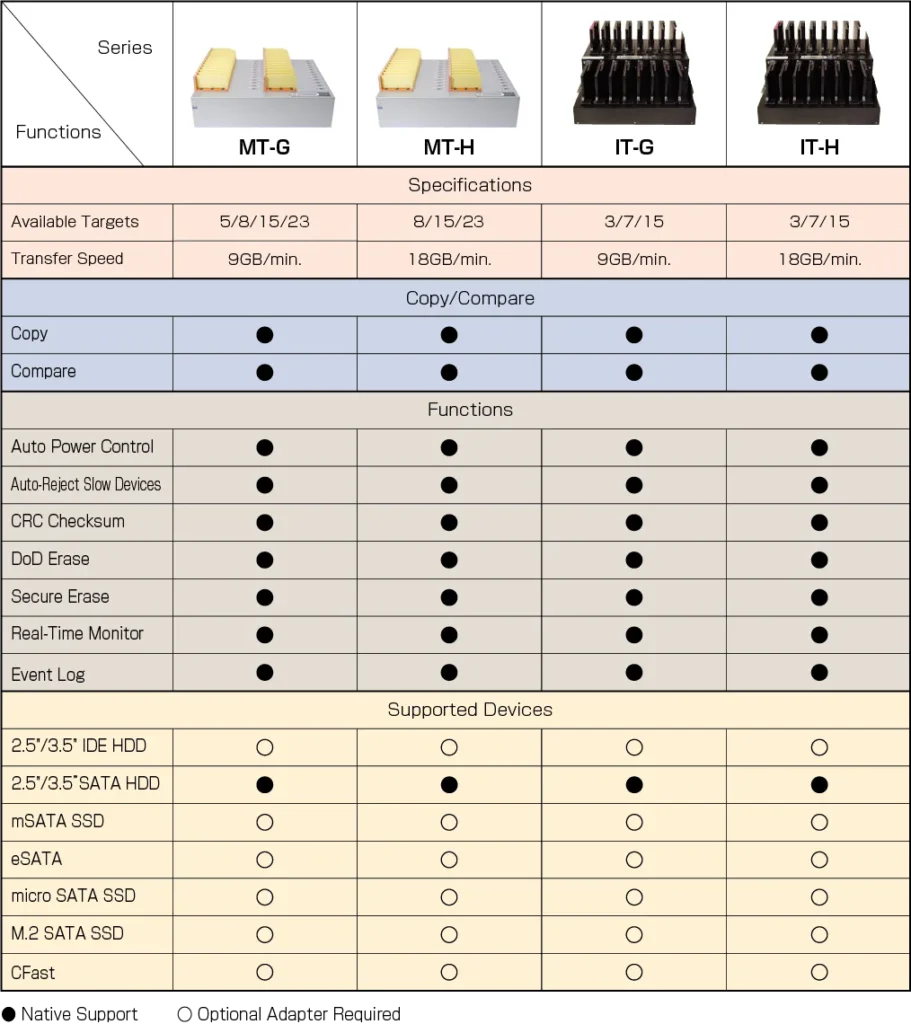

Comparison Chart
