ITS300SAS ITS-SAS Series
ITS300SAS
1 to 3 SAS/SATA HDD/SSD Duplicator and Sanitizer
ITS series is a professional SAS/SATA HDD duplicator, specially designed for high volume duplication. Equipped with U-Reach ‘s unique multitasking technology. the ITS series Hard Drive duplicator can simultaneously copy all targets and with a high transfer speed up to 30GB per minute. We guarantee highest productivity without speed degradation, even when the number of targets increase. The ITS series SAS/SATA Hard Drive duplicator provides four copy modes: quick copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/64), and Mac (HFS, HFS+, HFSX) are supported formats with quick copy.
In addition, the ITS series SAS/SATA Hard Drive duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase which can fulfill different levels of HDD wiping security.
- Open platform design accepts all multi-interface HDD/SSD.
- Supports both SAS & SATA interface up to 30GB *(Real performance depends on HDD’s speed)/min high transfer speed.
- Supports 2.5″, 3.5″ SATA, ZIF HDD, SSD, IDE HDD and SAS via IDE_SATA convertor (IDE to SATA adapter-TB1529 included).
- Data Sanitization: quick erase, full erase, secure erase, and DoD erase.
- Supports asynchronous erase.
- Log Report Management records all task details for better production management.
- Cable–free connection for easier HDD insert & remove.
- Supports SATA I/II/III and 4Kn HDD.
Impeccable High Speed
U-Reach ITS-SAS Series SATA/SAS HDD/SSD duplicator is capable of copying at 30GB/min. On all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.
Intelligent Duplication Modes
U-Reach ITS-SAS SAS HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.
Illustration of Copy Modes
The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive’s controller chip.
Sanitization Methods
High Compatibility
- Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
- Whole media copy mode supports all system and proprietary formats.
- Supports various brands.
- Designed to support 18TB+ capacities.
- Supports MBR and GPT partitioning.
Auto Rejection of Slow Devices
ITS-SAS Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.
Double Data Verification: Compare + CRC Checksum
U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.
Skipping Bad Sectors
End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.
Cable Free Design
Easier HDD Insertion & Removal.
Swappable HDD Port Module: easy for replacement and maintenance.
Cable free connection on HDD: supports 1.8″/2.5″/3.5” SATA HDD and SSD.
Via Adaptor: 2.5″, 3.5” IDE HDD, mSATA SSD, micro SATA, eSATA, ZIF, iVDR interfaces are compatible.
Optional Adapters Supported

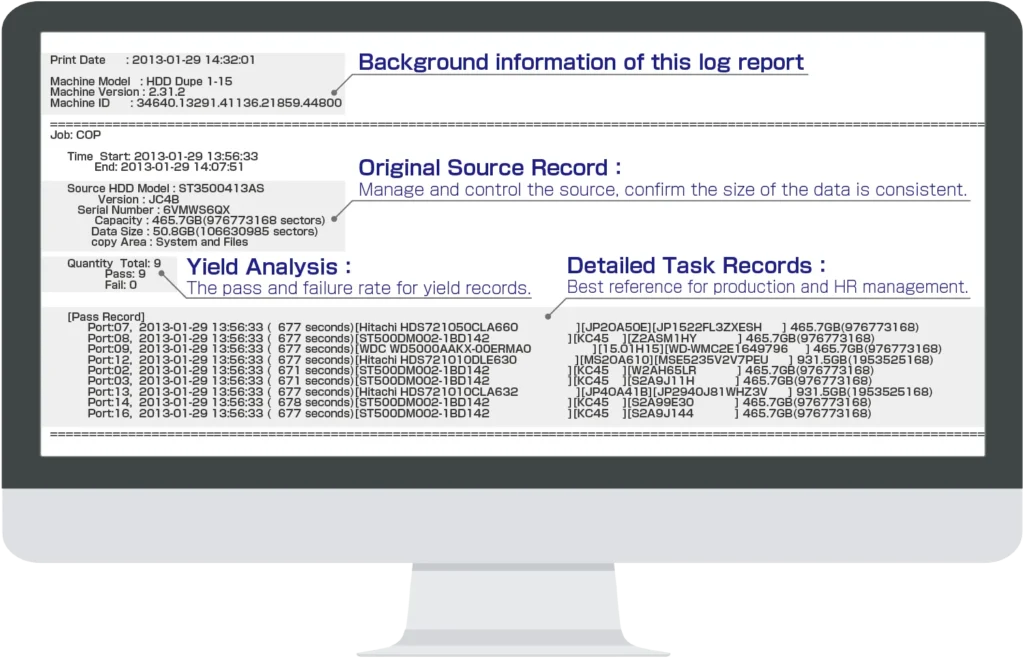

Event Log Report
U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
