Laser Cleaning
Our Laser Cleaning Machine uses a 532 nm YAG green laser to deliver precise and effective socket cleaning with minimal damage to plastic housings. Unlike 1064 nm infrared lasers, it ensures excellent cleaning performance and material safety. With stable laser output, integrated vacuum cleaning, and upgradeable semi-auto options, it offers superior reliability and efficiency for semiconductor and socket maintenance applications.

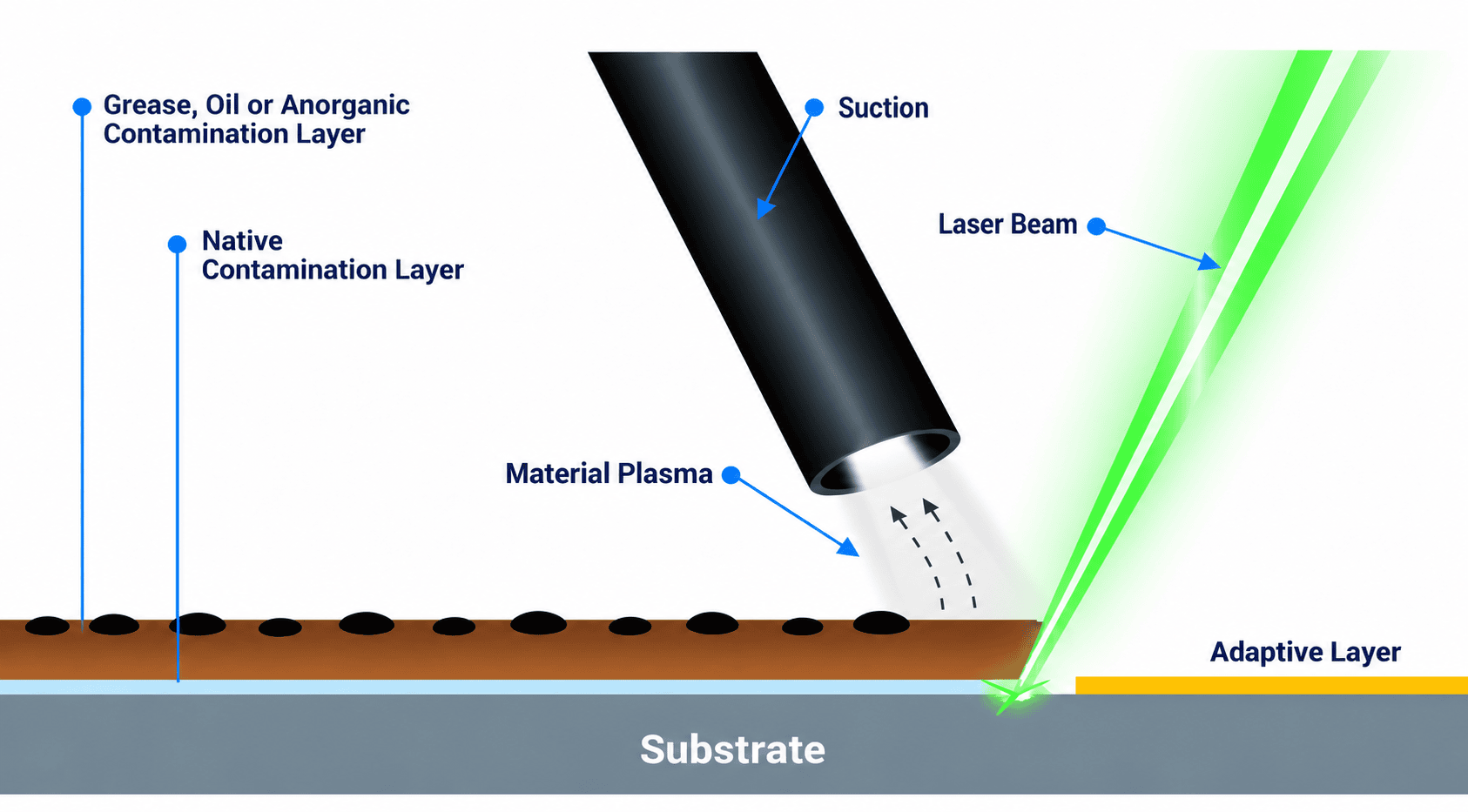

Laser Cleaning Basic
Why choose Laser Cleaning
In-situ Cleaning
High Speed Cleaning
Simple & Easy Handling Process
Model
| Item | Description | ||||
|---|---|---|---|---|---|
| Model |  |
|
 |
|
 |

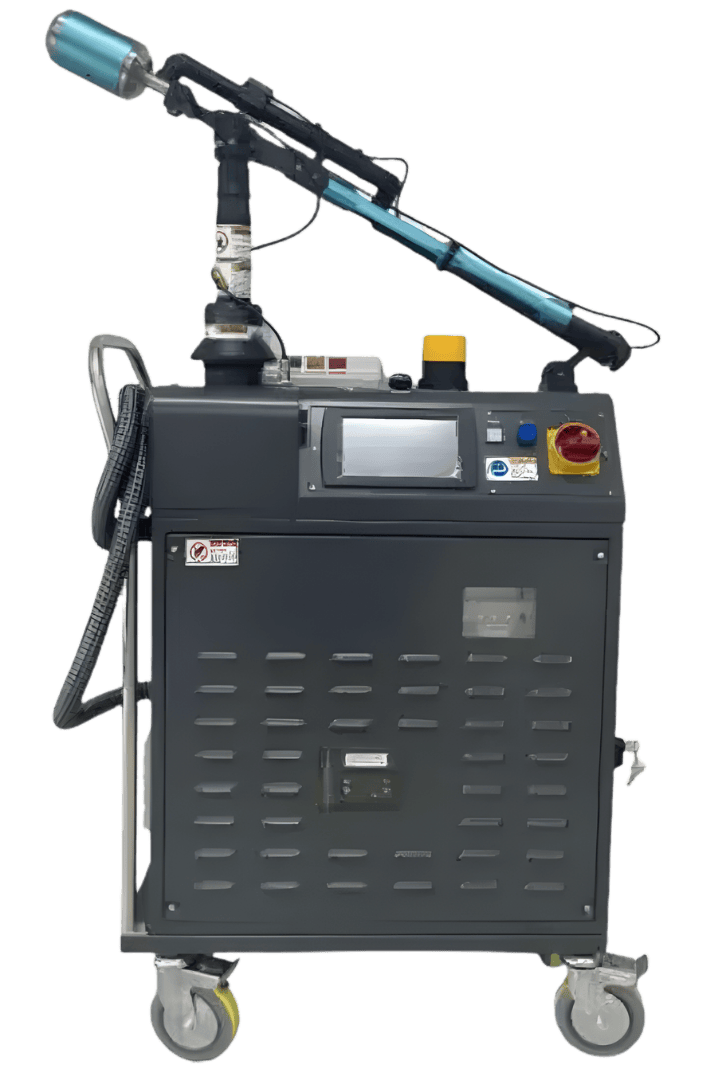

| Model Number | CTS-LZ600MV | CTS-LZ700MV | CTS-LZ600LM | CTS-LZ800LM | CTS-LZ400S |
| M/C Type | Mobile & Manual cleaning | Laser cleaning module, Automation ready | Automatic cleaning | ||
| Cleaning Target | Test Sockets (Spring Probe, TSOP, Rubber, Etc) |
Test Sockets (Spring Probe, TSOP, Rubber, Etc) |
Test Sockets / Probe Card | DSA / Load Bd. / Probe Card / Burn In Bd. | |
| Cleaning Laser | IMT made DLC laser | IMT made DLC laser (532nm) | IMT made DLC laser | ||
| Laser Beam | Max. 300mJ/pulse, Max. 5Hz | Max. 350mJ/pulse, Max. 5Hz | Max. 300mJ/pulse, Max. 5Hz | Max. 350mJ/pulse, Max. 10Hz | < 20 min/256 para Hi-Fix board |
| Dimension | (L)650 x (W)320 x (H)680 mm | (L)750 x (W)320 x (H)1020 mm | (L)880 x (W)530 x (H)1150 mm (w/o arm) | (W)880 x (D)850 x (H)1630 mm | (W)2050 x (D)1650 x (H)2530 mm |
| Weight | Approx. 110 Kg | Approx. 130 Kg | Approx. 200 Kg | Approx. 250 Kg | Approx. 1900 Kg |
| Utilities | 220VAC, 50/60Hz, 1 Phase, 20A | 220VAC, 50/60Hz, 2 Phase, 20A | 220VAC, 50/60Hz, 3 Phase, 40A | ||
| Control | Touch screen | Touch screen, Windows based | – | ||
| Consumables | Lamp / Water filter / Window | Lamp / Water filter / Window / Fume Filter | |||
