M.2 CBB+CLB1+CLB2
SIG-M2-CBBCLB-PCIE5

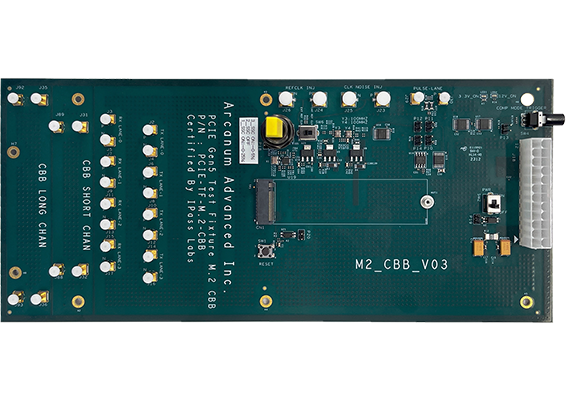

M.2 Signal Calibration Board
High-performance Signal Integrity Board is designed for physical layer conformance, supporting CBB and CLB1/CLB2 modules for precise calibration of both receivers and transmitters. It features MMPX connectors fully compatible with PCI-SIG CEM ISI boards, enabling reliable, repeatable high-speed signal measurements and seamless integration into compliance test environments for M.2 form factor designs.

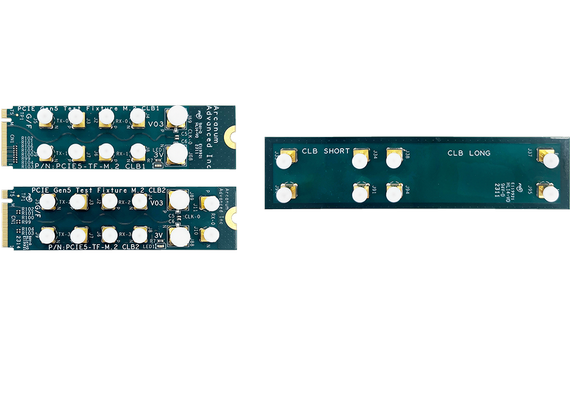

M.2 CBB+CLB1+CLB2 Signal Integrity Board is high-performance test fixture for M.2 physical layer conformance, featuring:
- Signal Integrity Board for M.2 Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), M.2 CBB and CLB1 CLB2 for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI SIG CEM ISI board.
