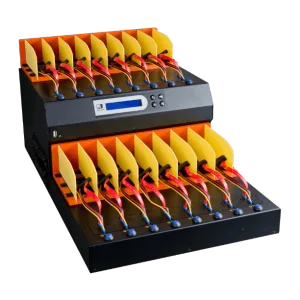

MTS1600SAS-V3 MTS Series
MTS1600SAS-V3
1 to 15 SAS/SATA HDD/SSD Duplicator and Sanitizer
U-Reach MTS-SAS series is a professional SATA/SAS HDD duplicator, specially designed for high volume duplication. Equipped with U-Reach ‘s unique multitasking technology. The MTS-SAS series Hard Drive duplicator can simultaneously copy all targets and with a high transfer speed up to 30GB per minute. We guarantee highest productivity without speed degradation, even when the number of targets increase.
The MTS-SAS series SAS/SATA Hard Drive duplicator provides four copy modes: quick copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. NTFS, Linux (Ext2/Ext3/Ext4), FAT/FAT32 and Mac (HFS, HFSX, HFS+) are supported formats with quick copy. Quick copy mode copies data and skips blank area; this mode enhances copy speed.
In addition, the MTS-SAS series SAS/SATA HDD duplicator is equipped with different levels of secure erase functions, Quick Erase, Full Erase, DoD 5220 Erase government standards and Secure Erase, which can fulfill different levels of HDD wiping security.
- Open platform design accepts all multi-interface HDD/SSD.
- Supports both SAS & SATA interface at 30GB *(Real performance depends on HDD’s speed)/min high transfer speed.
- Supports 2.5″, 3.5″ SATA, ZIF HDD, SSD, IDE HDD and SAS via IDE_SATA convertor (IDE to SATA adapter-TB1529 included)
- Complies with both DoD5220.22-M erase, NSA Erase and NIST 8008-88 Secure erase standards.
- NIST 8008-88 Secure erase standards.
- Supports asynchronous erase.
- Log Report Management records all task details for betterproduction management.
- Supports SATA I/II/III and 4Kn HDD.
Impeccable High Speed
U-Reach MTS-SAS Series SATA/SAS HDD/SSD duplicator is capable of copying at 30GB/min. on all targets simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.
Intelligent Duplication Modes
U-Reach MTS-SAS SAS HDD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.
Illustration of Copy Modes
The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive’s controller chip.
Fast Erase Key
Fast Erase Key enables the end-user to perform erase functions asynchronously.
Sanitization Methods
High Compatibility
- Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
- Whole media copy mode supports all system and proprietary formats.
- Supports various brands.
- Designed to support 18TB+ capacities.
- Supports MBR and GPT partitioning.
Auto Rejection of Slow Devices
MTS-SAS Series HDD/SSD duplicator enable end-users to set the minimum writing speed threshold. This feature was developed to prevent and to eliminate problematic devices that halts the duplication and sanitizing process.
Double Data Verification: Compare + CRC Checksum
U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.
Skipping Bad Sectors
End-users are given options to skip bad sectors from the source device. Access the function to select the numbers of bad sectors to skip, from 0 through unlimited.
Optional Adapters Supported
Event Log Report
U-Reach HDD/SSD duplicators has an unique mechanism to prevent alteration of its Event Log Report. It records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
