NU600D 1 to 5 SSD M.2 (SATA/NVMe) Duplicator and Sanitizer
Maximize your productivity with the UReach NU600D PCIe SSD Data Eraser. This high-speed and efficient solution allows you to quickly erase multiple PCIe SSDs, including M.2/NVMe Erasers, saving you valuable time and effort. Designed for professional use, the NU600D features a user-friendly interface and a range of advanced features to help streamline your workflow.
- Supports M.2 NVMe, SAS, SATA SSD
- 24GB/min 6 Bays High Speed Wiping
- Complied with NIST Purge & Clear, DoD 5220.22-M and more
- Auto Record and Generate Erasure Report
- Supports Bad Sector Skipping
Compliant with ISO27001 Standard
In addition to hard drive data erasure, it can also retain and extract the Data Erasure Certificate & Log Report. It’s not only compliant with ISO specification for the elimination of storage media but also protects information security for enterprises.
Event Log Report

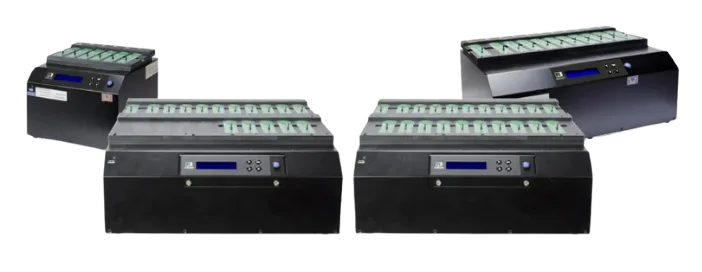

PE Series NVMe M.2 PCIe SSD Duplicators
Provide a variety of models of 1 to 5~20 ports for selection
Product Features
Heat Dissipation for Optimal Performance
The Built-in Dissipation Design Removes the Heat Being Created during Duplication to Optimize the Operating Performance
Intelligent Duplication Modes
The user may select the appropriate mode based on application demand.
Higher Speed Performance
Provides Copy Speed up to 24GB/min. (*Transfer Speeds May Vary with Different Drives)
Industrial Grade Hot-Swap Duplication
When each round of duplication is completed, the next round can start immediately without having to restart the machine.
Read-Only Source Port Design
The Source Drive Can Only Be Read to Protect Its Original Data.
High Compatibility
Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX) formats.
Dual data verification: Compare + CRC
Ensures the accuracy of the copied data.
Support Interface
The supported adapters need to be purchased separately.
Basic Specification
| Model | NU600D | NU1100D | NU1600D | NU2100D |
| Target | 1:5 | 1:10 | 1:15 | 1:20 |
| Maximum Transfer Speed | 24GB/min. *Actual performance is dependent on Device transfer speeds. | |||
| Capacity | Supports the latest market available capacity. Designed support capability up-to 18TB+. | |||
| LCD Display | 2×20 Backlit Monochrome LCD Display | |||
| Control Button | 4 Push Buttons (▲,  #, OK, ESC) |
|||
| Compatible Device | Directly compatible with: M.2 M Key & B+M Key. Compatible through optional modules: SATA, U.2(SFF-8639), Mini PCIe, mSATA, CFast, etc. |
|||
| Copy Mode | Quick Copy (System and Files) / All Partitions / Whole Device / Percentage Copy | |||
| Sanitization Modes | Quick Erase, Full Erase (NIST 800-88), DoD Erase (DoD 5220.22-M), Secure Erase (NIST 800-88) | |||
| Support Format | Quick copy (System and Files): FAT16/32/64, NTFS, Linux (Ext2/3/4), Mac (HFS/HFS+/HFSX), GPT, Dynamic All Partitions/ Whole HDD/ Percentage Copy: Supports all formats. |
|||
| Support Format | Quick Copy (System and Files): FAT16/32, exFAT, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac(HFS/HFS+/HFSX) Whole Device Copy: All formats, including proprietary formats. |
|||
| Supported OS | All (Windows, Mac, Linux, and other proprietary systems) | |||
| Power Supply | Universal Power: 115V AC or 230V AC, 50/60Hz | |||
| Temperature Range | Working Temperature: 0°C ~ 60°C; Storage Temperature: -20°C ~ 85°C | |||
| Humidity Range | Working Humidity: 20% ~ 80%; Storage Humidity: 5% ~ 95% | |||
| Safety & Regulations | FCC, CE, RoHS, Reach | |||
