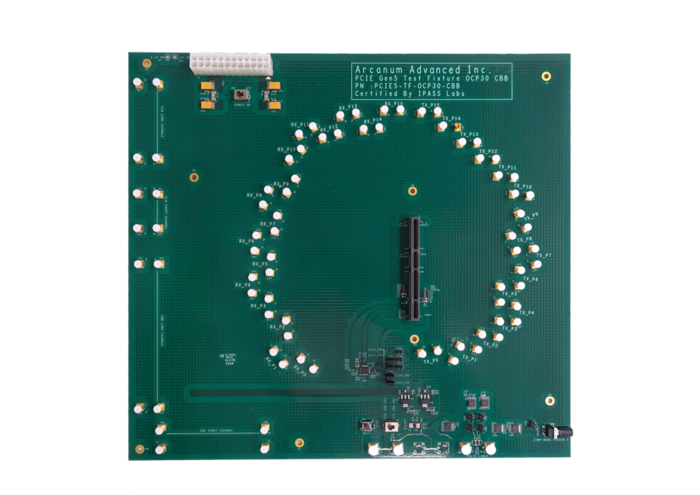

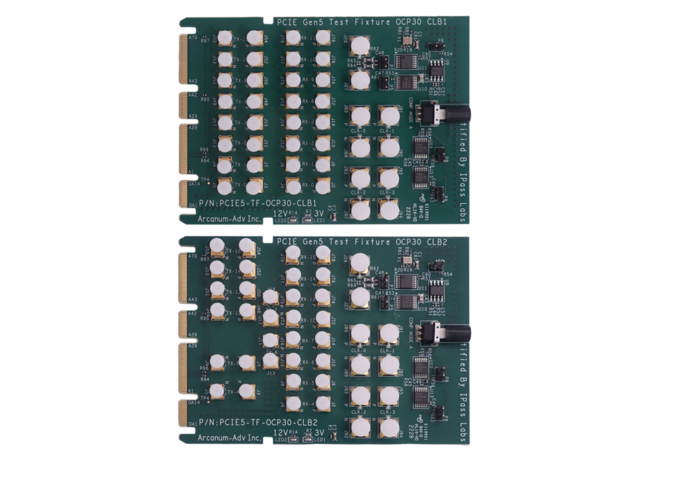

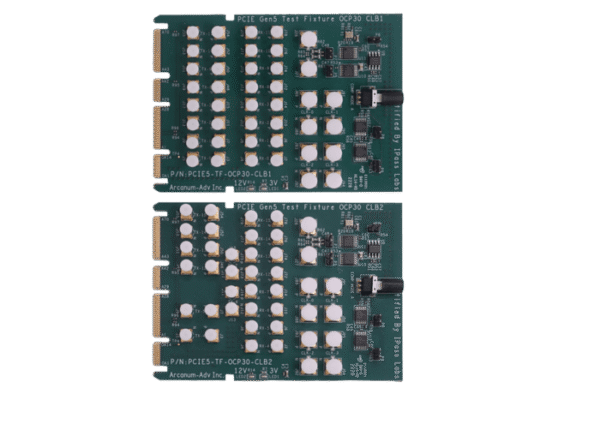

OCP 3.0 CBB+CLB1+CLB2 Signal Integrity Board is a high-performance test fixture for OCP 3.0 NIS physical layer conformance, supporting PCIe 5.0 (32 GT/s). Including CBB, CLB1, and CLB2 modules for accurate calibration of both receivers and transmitters, and features MMPX connectors fully compatible with PCI-SIG CEM ISI boards, ensuring reliable, repeatable high-speed signal measurements and seamless integration into compliance test environments.
OCP 3.0 CBB+CLB1+CLB2 Signal Integrity Board is high-performance test fixture for OCP 3.0 NIS physical layer conformance, featuring:
- Signal Integrity Board for OCP 3.0 NIS Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s) for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI SIG CEM ISI board.
