OCP3.0 CBB6.0
CBB6-OCP3-PCIE6-TF

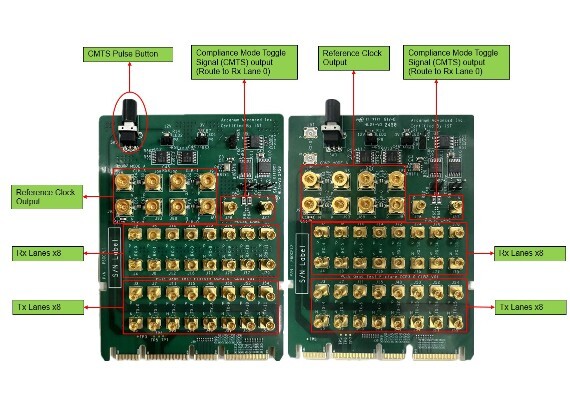

OCP3.0 CBB6.0 PCIe Gen6 Compliance Test Fixture is a high-speed PCIe Gen6 x16 test fixture designed for add-in card compliance validation. Supporting data rates up to 64 GT/s, it features MMPX connectors, 85Ω controlled impedance traces, and external reference clock injection for accurate signal integrity analysis. Toggle signal control enables efficient compliance mode testing, making the CBB6.0 ideal for electrical validation, margin testing, and early-stage debugging of next-generation PCIe designs.
OCP3.0 CBB6.0 is high-speed test fixture for PCIe Gen6 x16 add-in card compliance testing, featuring:
- MMPX connectors for clean signal routing
- 64 GT/s signal support for next-gen PCIe
- 85Ω controlled impedance traces
- External reference clock injection
- Toggle signal control for compliance mode testing
- Perfect for signal integrity validation and pre-compliance debugging
