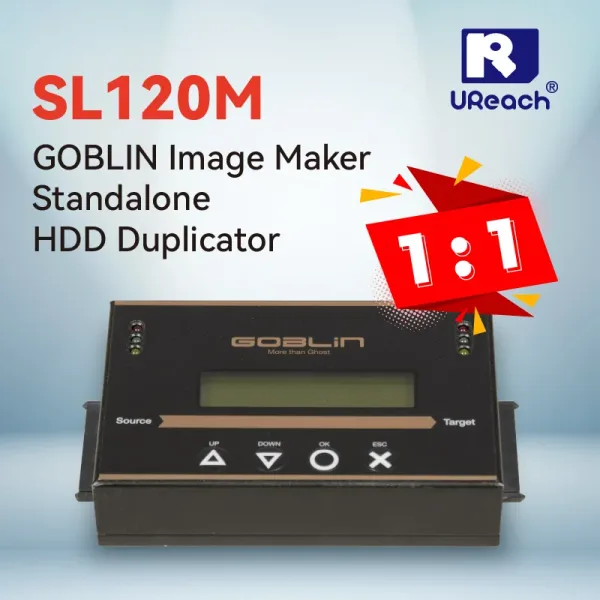

SL120M SATA Series
SL120M
1 to 1 Multiple Image Maker Duplicator Cloner

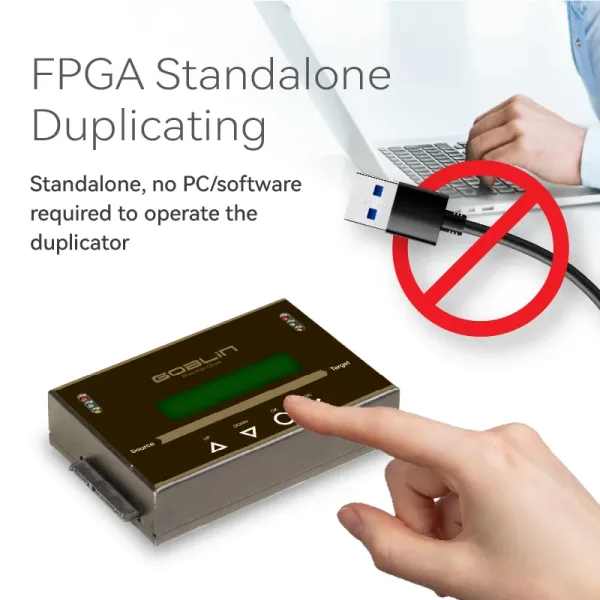

- Standalone
No PC/software required to operate the duplicator. - 4 Copy Modes
Quick Copy (System & files), All partitions, Whole HDD and Percentage. - Compatibilities
Supports all brands of 2.5”/3.5” SATA HDDs and SSDs, and 2.5″/3.5” IDE, iVDR, eSATA, mSATA, Micro SATA, M.2 (NGFF), and CFast with adapters, in both GPT and MBR formats. - Data Sanitization

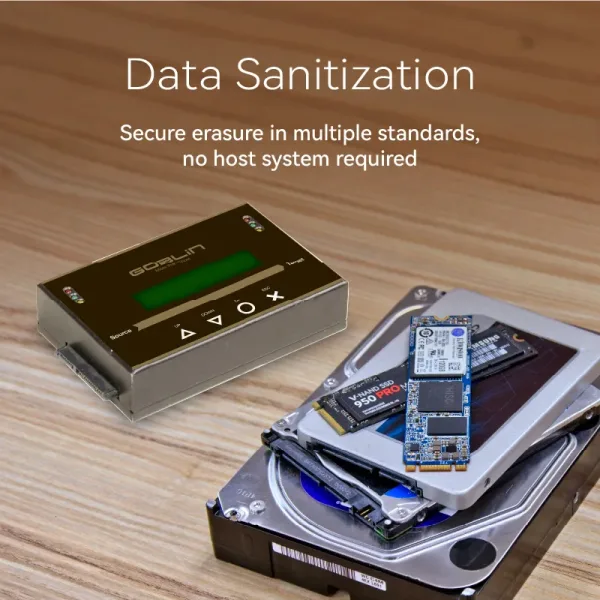

Quick erase, Full erase, Secure erase, and DoD erase. - Support System
Quick copy supports Linux (ext2/ext3/ext4), Mac, NTFS, and FAT16/32. - Goblin – Source Management System
Store multiple image files from different sources into one master hard disk. - 9 GB/min
Key Features

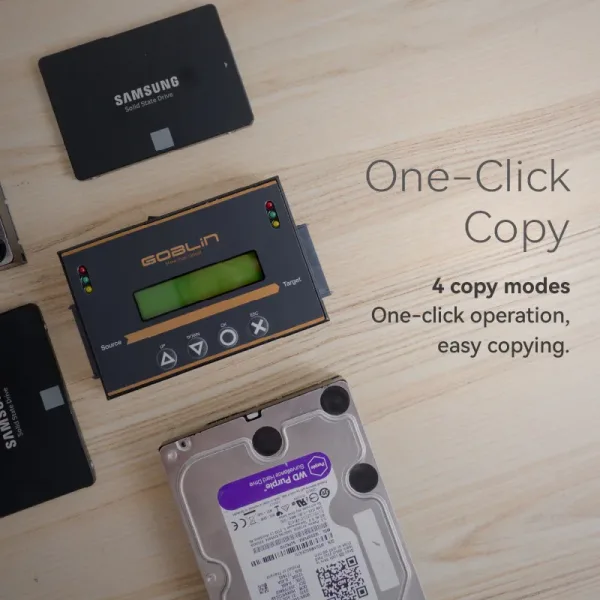

- Four copy modes including Quick (Systems & Files,) Whole Media, All Partitions, Percentage % Copy

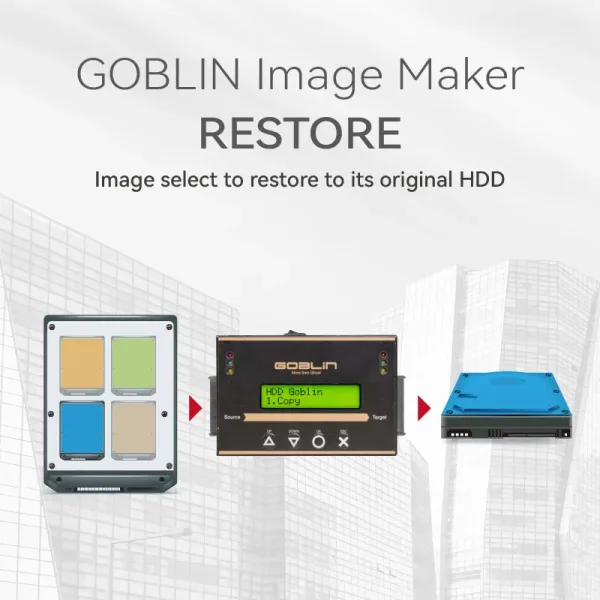

- Easy to restore source images back to original drives.
- Erase modes including Quick erase, Full erase (NIST Clear), DoD erase etc.

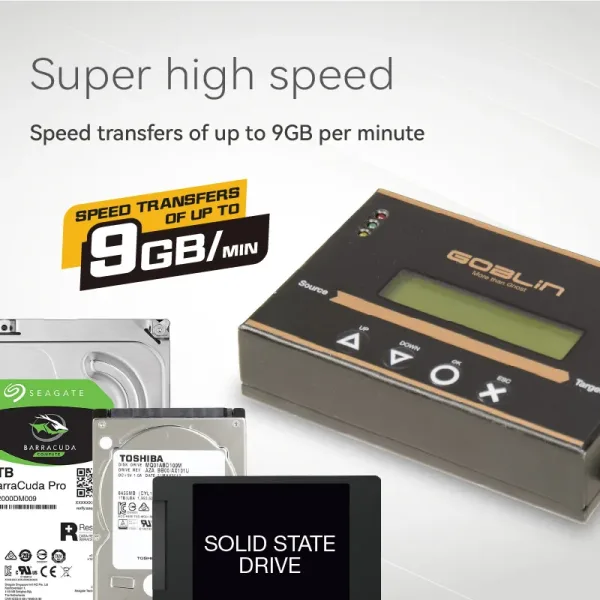

- With speeds up to 9 or 18GB per minute, this 1:1 portable SSD/HDD copier makes your offline cloning job quicker and easier.
- Skip bad sector function allows you to backup your old HDD.

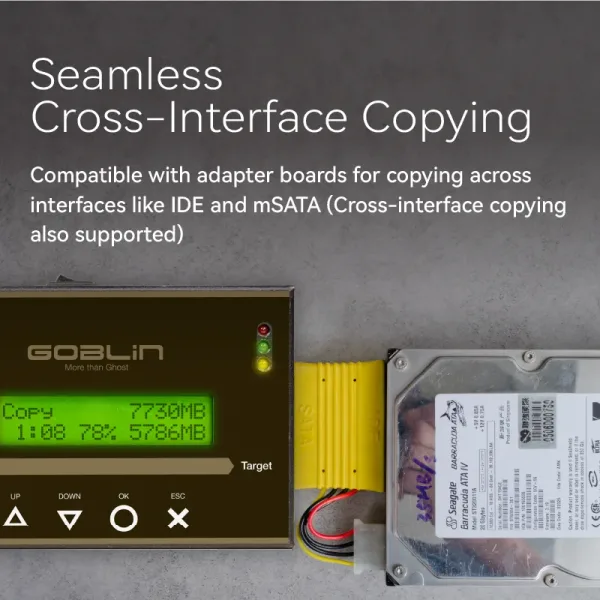

- Optional adapters to support various application, such as IDE, iVDR, eSATA, mSATA SSD, M.2(NGFF), Cfast devices.
Overview
U-Reach Goblin Series is a 1 to 1 standalone hard drive duplicator eraser, it enables you to copy to 1 target ports, or erase up to 2 SATA hard drives without connecting to the computer. Write-protect source port ensure your source data won’t be changed after cloning process.

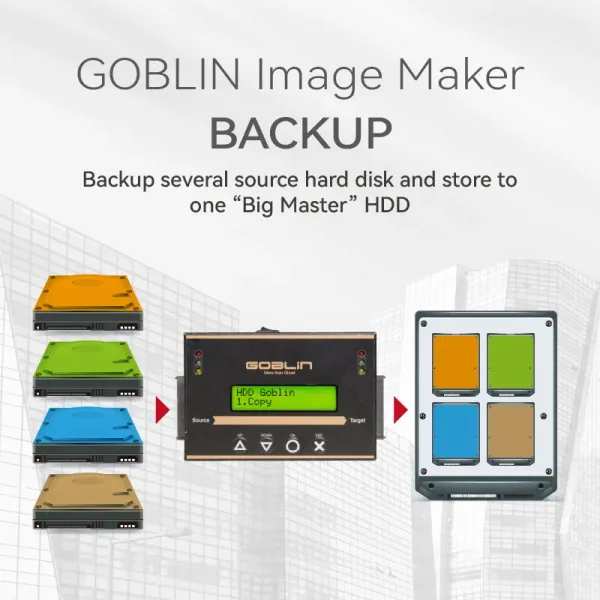

Source management system can store multiple image files from different sources into one master hard disk.
Unique Source Management system can store multiple image files from different sources into one master hard disk. You only need one big target drive to backup several source drives. Goblin Series is not only a duplicator, but also a eraser. It is capable of erasing 2 drives simultaneously with multiple erase modes including Quick erase, NIST Full erase, DoD erase etc.
More than just a duplicator, Goblin Series also a hard drive eraser. It is capable of erasing 2 drives simultaneously with multiple erase modes including Quick erase, NIST Full erase, DoD erase. It helps your data backup and data wiping process.
Applicable for 2.5” and 3.5” SATA hard drives (HDD) and Solid State Drives (SSD), the Goblin Series is a user-friendly all-in-one solution for any hard drive duplication or erasing.
For added compatibility with different drive types in duplication and quick erase applications, the Goblin Series supports the ususe of various drive adapters. The below list of JetMedia adapters have been specifically tested, to ensure compatibility with this hard drive cloner:
2.5inch IDE drives – 25H-IDE
3.5inch IDE drives – 35H-IDE
mSATA drives – MS-SD100
M.2 (NGFF) drives – NF-SD100
CFast Card – CFS-SA100
Application
- Image files from different sources into one master hard disk. Easy to restore source image back to original drives.

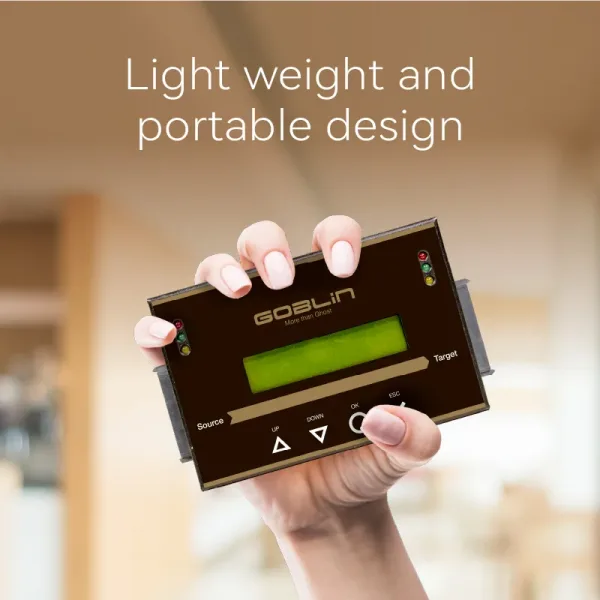

- Standalone and portable design requires no PC or additional software for data duplication or erase.
- Data backup tool for repair workshop, office staff, enterprise use.
- Identical backup tool for data recovery process..
- 1-to-1 copy or erase up to 2 SATA hard drives simultaneously without a host computer.
| Model | SL120 | HS268 | ||
| Target | 1:1 | 1:1 | ||
| Maximum Transfer Speed | 9GB/min. *Actual performance maydepend on HDD transfer speeds | 18GB/min. *Actual performance maydepend on HDD transfer speeds | ||
| Capacity | Support the latest available capacity on the market. Designed to support capacities up to 32TB+. | |||

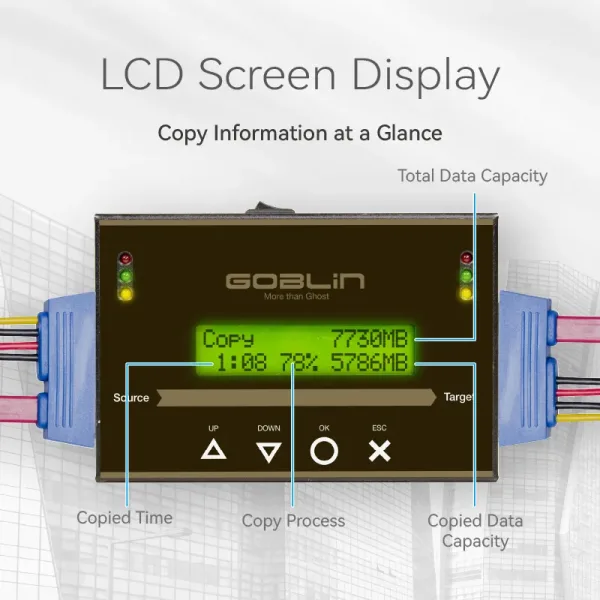

| Display | Monochrome LCD | |||

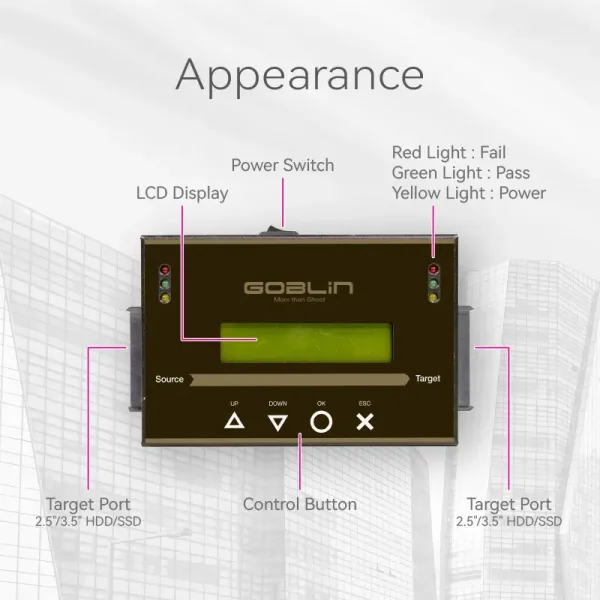

| Control Button | 4 Push Buttons(▲, ▼, OK, ESC ) | |||
| Compatible Device | 1.8″/2.5″/3.5” SATA HDDs andSSDs.2.5″/3.5” IDE, iVDR, eSATA, mSATA, Micro SATA, M.2 (NGFF),and CFast (with required adapters) | |||
| Copy Mode | System and Files, All Partitions, Whole HDD, Percentage | |||
| Support Format | Quick copy (System and Files): FAT16/32/64, NTFS, Linux (Ext2/3/4), Mac (HFS/HFS+/HFSX), GPT, Dynamic
Whole HDD : Supports all formats. |
|||
| Supported OS | All (Windows, MAC, Linux, RAID, etc.) | |||
| Power Supply | 110-220V 7A | |||
| Temperature Range | Working Temperature: 5°C ~ 45°C ; Storage Temperature: -20°C ~ 85°C | |||
| Humidity Range | Working Humidity: 20% ~ 80% ; Storage Humidity: 5% ~ 95% | |||
| Safety & Regulations | FCC, CE, RoHS | |||
What interfaces are supported?
1.8″/2.5″/3.5″ SATA HDD and SSD. Compatible Devices (with required adapter) include 2.5″/3.5″ IDE, mSATA, micro SATA, eSATA, iVDR, M.2(NGFF), CFast, SATA DOM.
Copy/erase speed?
9 GB/min
Is continuous monitoring of copy/erase progress required?
No
How many copies/erases can be supported simultaneously?
One-to-one copying
What file formats are supported?
All (Windows, Linux, RAID, Other stand-alone systems)
What is the maximum supported hard drive capacity?
Supports the latest market available capacity. Designed support capability up to 18TB+.
Is computer operation required for connection?
Standalone
Which models support hot swapping?
This model supports hot swapping.
