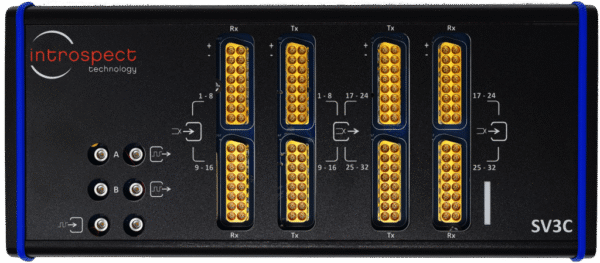

SV3C-12 Personalized SerDes Tester
The SV3C-12 Personalized SerDes Tester from Introspect Technology is an ultra-portable, high-performance instrument engineered for advanced validation of SerDes interfaces such as PCI Express Gen 3, USB3, M-PHY, DDR3, and DDR controllers. Housed in a handheld form factor, it delivers the highest level of integration with 32 independent stimulus generation ports and 32 independent capture and measurement ports, enabling true parallel bit-error-rate testing across all lanes.
Key features include per-lane TX amplitude and pre-emphasis control, RX clock recovery and equalization, TX jitter injection, and integrated RX jitter analysis. The instrument supports any-rate operation, flexible loopback, and offers built-in BERT, eye diagram, and analog waveform measurement capabilities. Driven by Introspect’s intuitive Python-based software environment, Pinetree, the SV3C-12 empowers engineering teams to automate tests and rapidly develop robust SerDes verification routines across a broad range of high-speed digital systems.
- Highest level of integration at 32 lanes in a handheld form factor
- True parallel bit-error-rate measurement across all lanes
- Per lane TX amplitude and pre-emphasis control
- Per lane RX clock recovery and equalization
- TX jitter injection and integrated RX jitter testing
- BERT, eye diagram and analog waveform measurement capabilities
- Any rate programming and flexible loopback support
- State-of-the-art programming environment based on the highly intuitive Python language
The SV3C Personalized SerDes Tester is an ultra-portable, high-performance instrument that creates a new category of tool for high-speed digital product engineering teams. It integrates multiple technologies in order to enable the self-contained test and measurement of complex SerDes interfaces such as PCI Express Gen 3, USB3, M-PHY, DDR3 and DDR Controllers.
The SV3C fits in one hand and contains 32 independent stimulus generation ports, 32 independent capture and measurement ports, and offers world-class signal-integrity features such as jitter injection and jitter measurement. Coupled with a seamless, easy-to-use software environment, Pinetree, this tool enables product engineers with widely varying skill sets to efficiently work with and develop SerDes verification algorithms.
