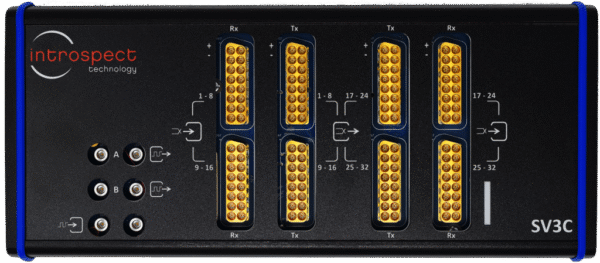

SV3C-4 Personalized SerDes Tester
The SV3C-4 Personalized SerDes Tester from Introspect Technology is a highly integrated, ultra-portable instrument designed to address the testing needs of high-speed digital product engineering teams. With up to 32 lanes in a compact, handheld form factor, it provides true parallel bit-error-rate measurement, along with advanced per-lane controls for TX amplitude, pre-emphasis, RX clock recovery, and equalization.
Supporting jitter injection, RX jitter testing, eye diagram generation, and analog waveform measurements, it offers complete SerDes test coverage. The SV3C-4 is ideal for characterizing interfaces such as PCI Express Gen 3, USB3, M-PHY, DDR3, and DDR Controllers. Powered by Introspect’s intuitive Python-based Pinetree software, it enables automation and streamlines the development of SerDes verification algorithms across diverse engineering skill sets.
- Highest level of integration at 32 lanes in a handheld form factor
- True parallel bit-error-rate measurement across all lanes
- Per lane TX amplitude and pre-emphasis control
- Per lane RX clock recovery and equalization
- TX jitter injection and integrated RX jitter testing
- BERT, eye diagram and analog waveform measurement capabilities
- Any rate programming and flexible loopback support
- State-of-the-art programming environment based on the highly intuitive Python language
The SV3C Personalized SerDes Tester is an ultra-portable, high-performance instrument that creates a new category of tool for high-speed digital product engineering teams. It integrates multiple technologies in order to enable the self-contained test and measurement of complex SerDes interfaces such as PCI Express Gen 3, USB3, M-PHY, DDR3 and DDR Controllers.
The SV3C fits in one hand and contains 32 independent stimulus generation ports, 32 independent capture and measurement ports, and offers world-class signal-integrity features such as jitter injection and jitter measurement. Coupled with Introspect’s award-winning software environment, Pinetree, this tool enables product engineers with widely varying skill sets to efficiently work with and develop SerDes verification algorithms.
