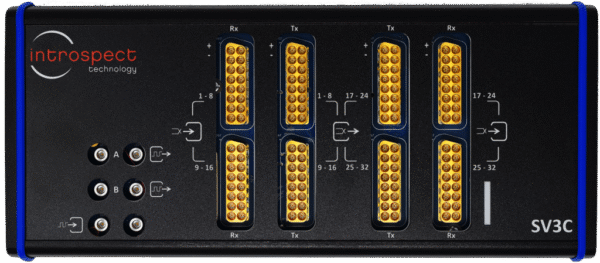

SV3C-8 Personalized SerDes Tester
The SV3C-8 Personalized SerDes Tester from Introspect Technology is an ultra-portable, high-performance instrument designed for comprehensive testing and validation of high-speed SerDes interfaces. Offering 8 independent stimulus generation ports and 8 independent capture and measurement ports, it enables true parallel bit-error-rate measurement across all lanes. Engineers can precisely control per-lane TX amplitude, pre-emphasis, RX clock recovery, and equalization, while also benefiting from integrated TX jitter injection and RX jitter testing.
The SV3C-8 supports any-rate programming, flexible loopback modes, and delivers advanced measurement capabilities such as BERT, eye diagram, and analog waveform analysis. Powered by Introspect’s intuitive Python-based software environment, Pinetree, this compact tester is ideal for validating interfaces like PCI Express Gen 3, USB3, MIPI M-PHY, and DDR controllers, making it a valuable tool for product engineering teams focused on performance, flexibility, and ease of use.
- Highest level of integration at 32 lanes in a handheld form factor
- True parallel bit-error-rate measurement across all lanes
- Per lane TX amplitude and pre-emphasis control
- Per lane RX clock recovery and equalization
- TX jitter injection and integrated RX jitter testing
- BERT, eye diagram and analog waveform measurement capabilities
- Any rate programming and flexible loopback support
- State-of-the-art programming environment based on the highly intuitive Python language
The SV3C Personalized SerDes Tester is an ultra-portable, high-performance instrument that creates a new category of tool for high-speed digital product engineering teams. It integrates multiple technologies in order to enable the self-contained test and measurement of complex SerDes interfaces such as PCI Express Gen 3, USB3, M-PHY, DDR3 and DDR Controllers.
The SV3C fits in one hand and contains 32 independent stimulus generation ports, 32 independent capture and measurement ports, and offers world-class signal-integrity features such as jitter injection and jitter measurement. Coupled with Introspect’s award-winning software, Pinetree, this tool enables product engineers with widely varying skill sets to efficiently work with and develop SerDes verification algorithms.
