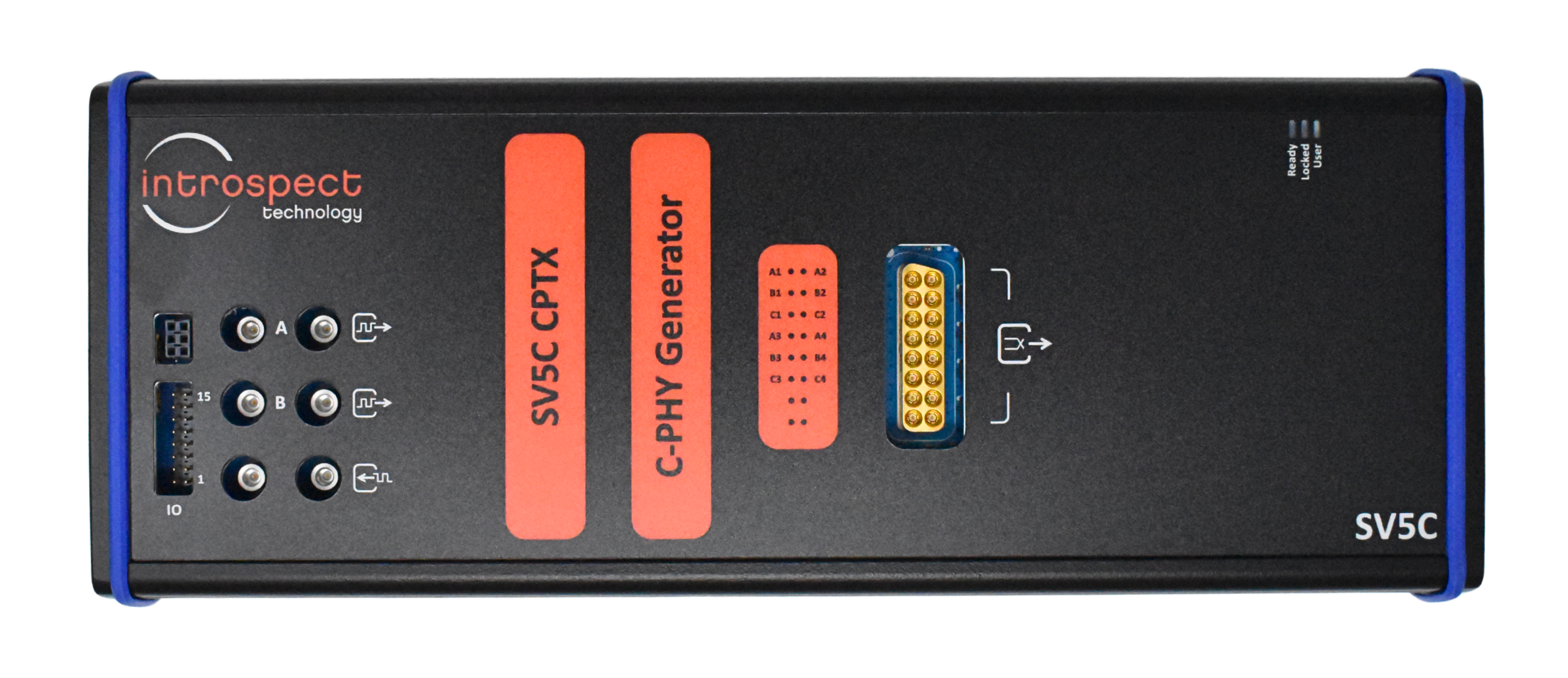

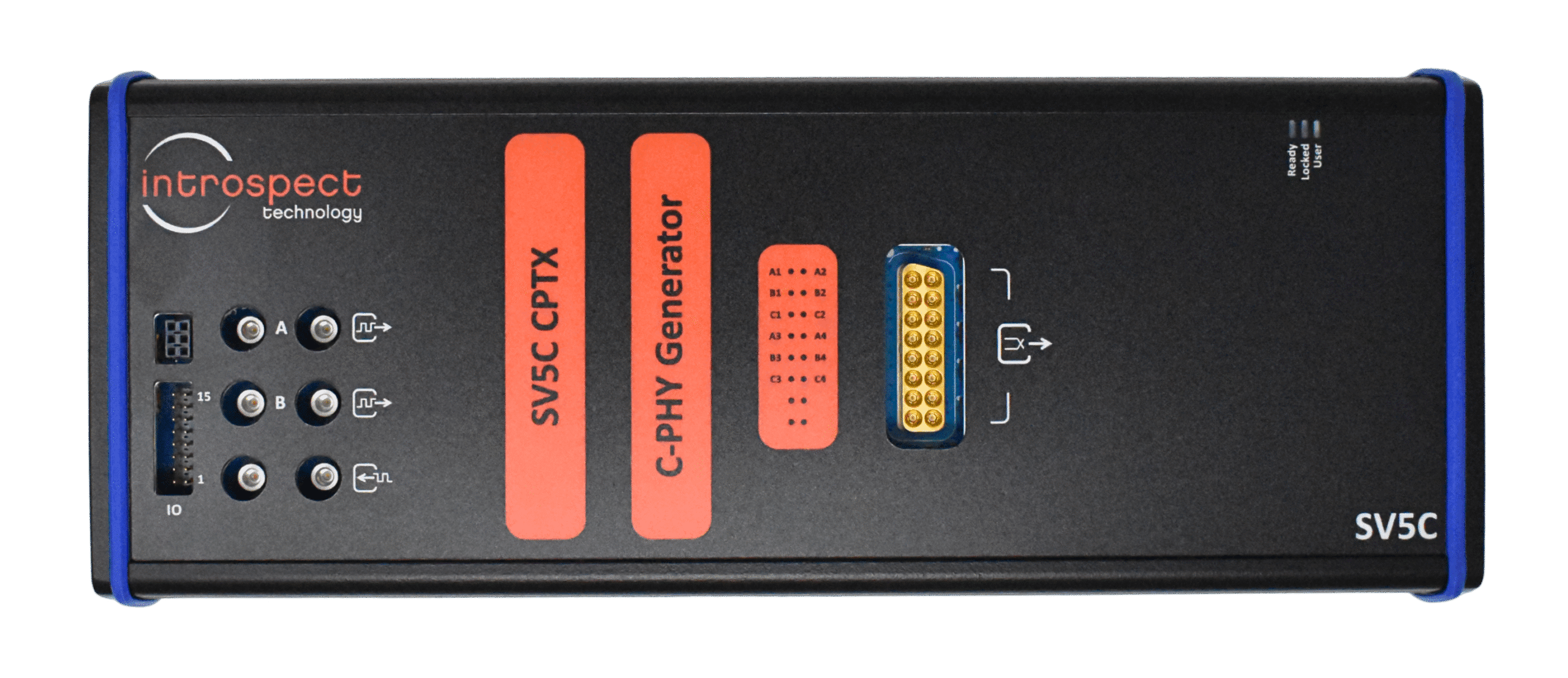

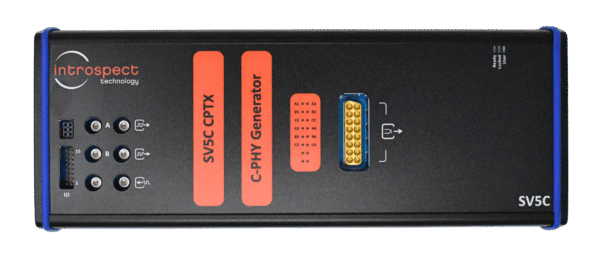

SV5C-CPTX MIPI C-PHY Generator
The SV5C-CPTX MIPI C-PHY Generator is a compact yet high-performance tool designed to deliver comprehensive receiver testing for C-PHY interfaces. It supports a wide, continuous range of data rates and offers precise analog controls, enabling detailed evaluation of receiver voltage sensitivity, skew tolerance, and jitter performance for robust stress testing.
Powered by Introspect’s Pinetree software environment, the generator allows automated physical-layer compliance testing, including full support for the MIPI CTS. Pinetree also provides advanced pattern-generation capabilities, making it easy to create complete DSI or CSI-2 packet structures—such as color bars and active image frames—for thorough system-level verification.
- Any-rate operation up to 8 Gsps per trio
- Per-lane HS voltage level and common-mode control
- Per-lane LP voltage level control
- Per-wire skew injection with < 1 ps resolution
- Per-lane multi-source jitter injection
- State-of-the-art programming environment based on the highly intuitive Python language
The SV5C-CPTX MIPI C-PHY Generator is an ultra-portable, high-performance instrument that provides the most comprehensive C-PHY receiver test capabilities available on the market.
The instrument operates at a continuous range of data rates and includes analog parameter controls that enable deep insights into receiver voltage sensitivity, receiver skew and jitter tolerance for receiver stress-testing. The C-PHY Generator operates with Introspect’s easy-to-use, highly versatile software environment, Pinetree, for automated physical layer compliance test, including the MIPI CTS. Pinetree also includes pattern compiler tools that enable the generation of complete DSI or CSI-2 packets such as color bars and active image frames for system-level test.
