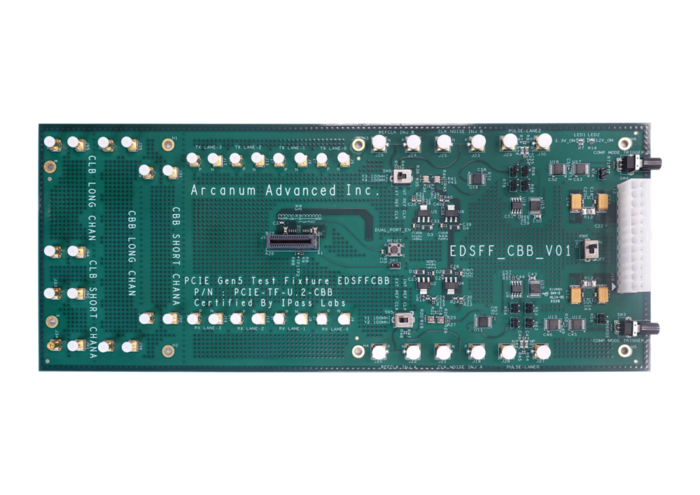

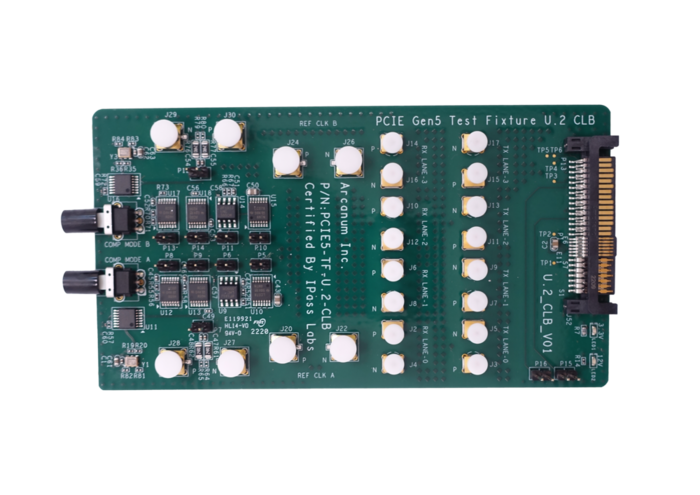

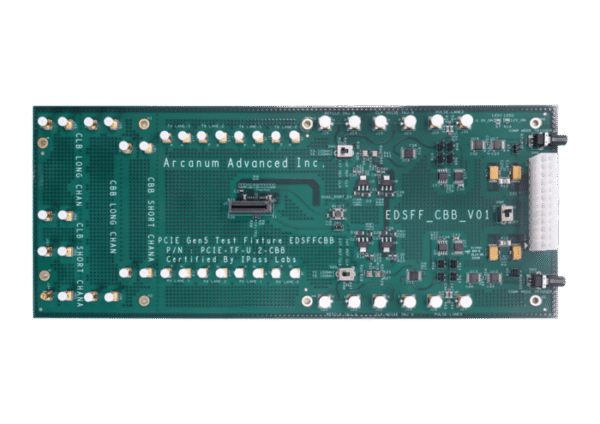

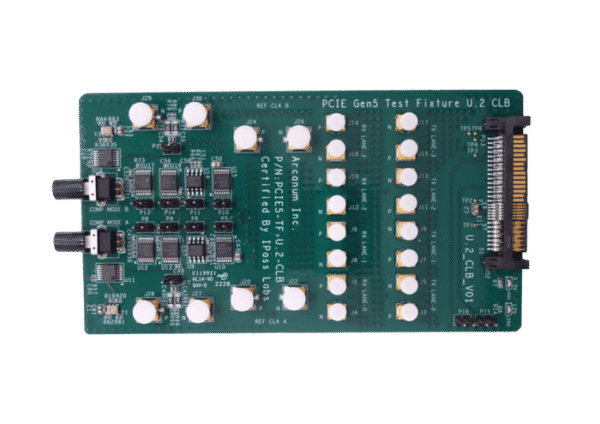

U.2 CBB+CLB
SFF-8693
U.2 Signal Calibration Board
U.2 (SFF-8693) CBB+CLB Signal Integrity Board is a high performance test fixture for physical layer conformance. Supporting CBB and CLB modules for accurate calibration of both receivers and transmitters, and features MMPX connectors fully compatible with PCI-SIG CEM ISI boards, ensuring reliable, repeatable high speed signal measurements and seamless integration into compliance test environments.
U.2 CBB+CLB Signal Integrity Board is high-performance test fixture for U.2 (SFF-8693) physical layer conformance, featuring:
- Signal Integrity Board for U.2(SFF-8693) Physical Layer Conformance.
- Support PCIe 5.0 (32GT/s), U.2 CBB and CLB for both receivers and transmitters calibration
- MMPX connectors are 100% compatible with PCI SIG CEM ISI board. U.2 CBB+CLB
