U.3 CBB+CLB

SFF-TA-1001

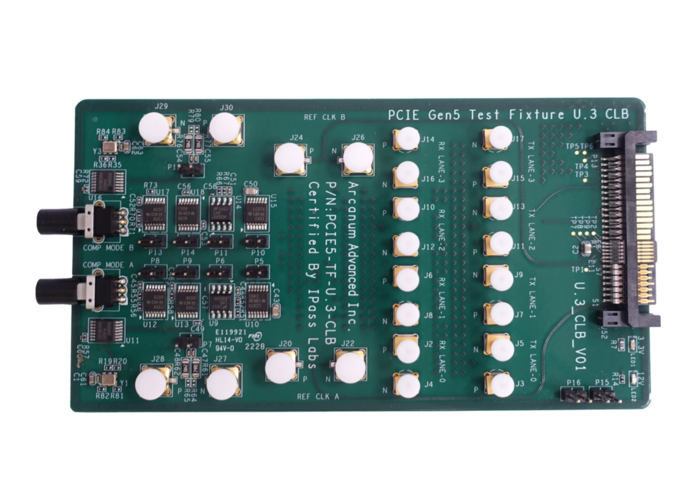

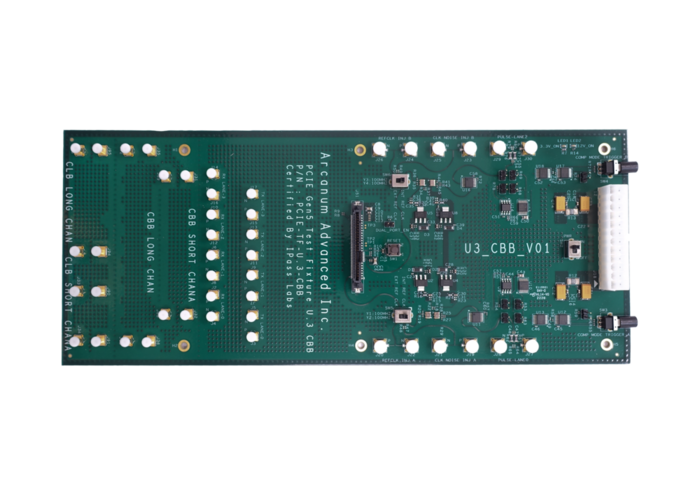

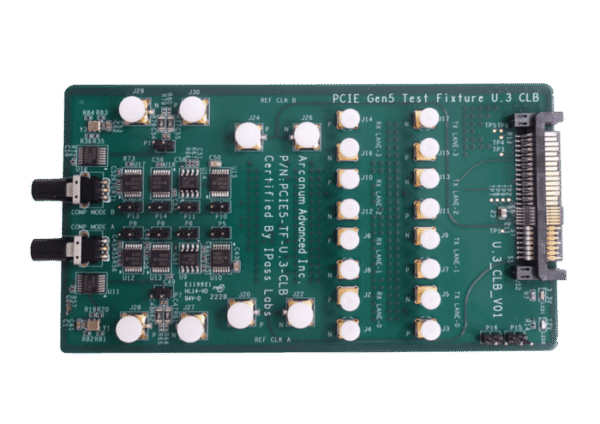

U.3 Signal Calibration Board

U.3 (SFF-TA-1001) CBB+CLB PCIe 5.0 Signal Integrity Board is designed for physical layer conformance, supporting CBB and CLB modules for precise receiver and transmitter calibration, with MMPX connectors fully compatible with PCI-SIG CEM ISI boards for reliable high-speed testing.

Features

U.3 CBB+CLB Signal Integrity Board is Arcanum’s high-performance test fixture for U.3 (SFF-TA-1001) physical layer conformance, featuring:

  • Signal Integrity Board for U.3(SFF-TA- 1001) Physical Layer Conformance.
  • Support PCIe 5.0 (32GT/s), U.3 CBB and CLB for both receivers and transmitters calibration
  • MMPX connectors are 100% compatible with PCI SIG CEM ISI board.
