Straight Fin Heat Sinks w/ superGRIP™ Attachment
Designed specifically for BGAs and other surface mount packages

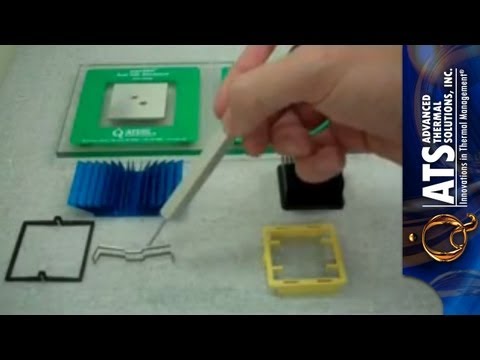

maxiGRIP™ and superGRIP™ heat sink attachments are the state-of-the-art in attaching a heat sink to a BGA device manufactured by a variety of companies such as Altera, TI, Xilinx, Freescale and many others. superGRIP™ offers the least amount of keep-out area required around a given BGA – once used with a straight fin heat sink, it makes it an ideal cooling solution for high-density PCBs where the thermal requirements and board routing makes the use of other heat sink attachments difficult.
| Dimensions | |
|---|---|
| Length (A) | 17.00 – 45.00 mm |
| Width (B) | 17.00 – 45.00 mm |
| Height (C) | 7.50 – 17.50 mm |
| Fin Tip to Fin Tip (D) | 17.00 – 45.00 mm |
- The superGRIP™ super strong, uniform attachment force helps achieve maximum performance from phase changing TIM and does not require holes to be drilled in the PCB
- The patented frame and spring clip allows the heat sink to be detached and reattached without damaging the component or the PCB, an important feature in the event a PCB may need to be reworked
- Meets Telcordia GR-63-Core Office Vibration, ETSI 300 019 Transportation Vibration; and MIL-STD-810 Shock and Unpackaged Drop Testing standards
- Requires minimal space around the component s perimeter; ideal for densely populated PCBs
- “Keep-Out” Requirements: An “un-populated” boarder zone of 3 mm around the component is necessary to facilitate the Installation/Removal of the superGRIPTM.
ATS’ straight fin heat sinks can be applied to a wide variety of components, including:
- Altera
- AMD
- Freescale
- Intel
- TI
- Xilinx
| Part Number | Lifecycle Status |
Dimension (mm) | Thermal Resistance (R,°C/W) at Air Velocity(V,ft/min.) | R (Natural Convection) °C/W |
R (200 ft/min.) °C/W Ducted |
Fin Tip | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | V=200 | V=400 | V=600 | V=800 | |||||
| ATS-X53250B-C1-R0 | ACTIVE | 25.0 | 25.0 | 7.5 | 15.3 | N/A | N/A | N/A | N/A | 7.3 | N/A |
| ATS-X53250G-C1-R0 | ACTIVE | 25.0 | 25.0 | 12.5 | 8.1 | N/A | N/A | N/A | N/A | 4.7 | N/A |
| ATS-X53250P-C1-R0 | ACTIVE | 25.0 | 25.0 | 17.5 | 5.7 | N/A | N/A | N/A | N/A | 3.4 | N/A |
| ATS-X53270B-C1-R0 | ACTIVE | 27.0 | 27.0 | 7.5 | 14.1 | N/A | N/A | N/A | N/A | 7.0 | N/A |
| ATS-X53270G-C1-R0 | ACTIVE | 27.0 | 27.0 | 12.5 | 7.6 | N/A | N/A | N/A | N/A | 4.5 | N/A |
| ATS-X53270P-C1-R0 | ACTIVE | 27.0 | 27.0 | 17.5 | 5.3 | N/A | N/A | N/A | N/A | 3.3 | N/A |
| ATS-X53290B-C1-R0 | ACTIVE | 29.0 | 29.0 | 7.5 | 13.1 | N/A | N/A | N/A | N/A | 6.7 | N/A |
| ATS-X53290G-C1-R0 | ACTIVE | 29.0 | 29.0 | 12.5 | 7.1 | N/A | N/A | N/A | N/A | 4.4 | N/A |
| ATS-X53290P-C1-R0 | ACTIVE | 29.0 | 29.0 | 17.5 | 5.0 | N/A | N/A | N/A | N/A | 3.2 | N/A |
| ATS-X53300B-C1-R0 | ACTIVE | 30.0 | 30.0 | 7.5 | 12.7 | N/A | N/A | N/A | N/A | 6.6 | N/A |
| ATS-X53300G-C1-R0 | ACTIVE | 30.0 | 30.0 | 12.5 | 6.9 | N/A | N/A | N/A | N/A | 4.3 | N/A |
| ATS-X53300P-C1-R0 | ACTIVE | 30.0 | 30.0 | 17.5 | 4.8 | N/A | N/A | N/A | N/A | 3.1 | N/A |
| ATS-X53310B-C1-R0 | ACTIVE | 31.0 | 31.0 | 7.5 | 12.0 | N/A | N/A | N/A | N/A | 5.1 | N/A |
| ATS-X53310G-C1-R0 | ACTIVE | 31.0 | 31.0 | 12.5 | 6.2 | N/A | N/A | N/A | N/A | 3.3 | N/A |
| ATS-X53310P-C1-R0 | ACTIVE | 31.0 | 31.0 | 17.5 | 4.7 | N/A | N/A | N/A | N/A | 3.1 | N/A |
| ATS-X53325B-C1-R0 | ACTIVE | 32.5 | 32.5 | 7.5 | 11.3 | N/A | N/A | N/A | N/A | 5.0 | N/A |
| ATS-X53325G-C1-R0 | ACTIVE | 32.5 | 32.5 | 12.5 | 5.9 | N/A | N/A | N/A | N/A | 3.2 | N/A |
| ATS-X53325P-C1-R0 | ACTIVE | 32.5 | 32.5 | 17.5 | 4.1 | N/A | N/A | N/A | N/A | 2.3 | N/A |
| ATS-X53330B-C1-R0 | ACTIVE | 33.0 | 33.0 | 7.5 | 11.1 | N/A | N/A | N/A | N/A | 5.0 | N/A |
| ATS-X53330G-C1-R0 | ACTIVE | 33.0 | 33.0 | 12.5 | 5.8 | N/A | N/A | N/A | N/A | 3.2 | N/A |
| ATS-X53330P-C1-R0 | ACTIVE | 33.0 | 33.0 | 17.5 | 4.1 | N/A | N/A | N/A | N/A | 2.3 | N/A |
| ATS-X53350B-C1-R0 | ACTIVE | 35.0 | 35.0 | 7.5 | 10.3 | N/A | N/A | N/A | N/A | 4.8 | N/A |
| ATS-X53350G-C1-R0 | ACTIVE | 35.0 | 35.0 | 12.5 | 5.4 | N/A | N/A | N/A | N/A | 3.1 | N/A |
| ATS-X53350P-C1-R0 | ACTIVE | 35.0 | 35.0 | 17.5 | 3.8 | N/A | N/A | N/A | N/A | 2.2 | N/A |
| ATS-X53375B-C1-R0 | ACTIVE | 37.5 | 37.5 | 7.5 | 10.0 | N/A | N/A | N/A | N/A | 3.8 | N/A |
| ATS-X53375G-C1-R0 | ACTIVE | 37.5 | 37.5 | 12.5 | 5.0 | N/A | N/A | N/A | N/A | 2.4 | N/A |
| ATS-X53375P-C1-R0 | ACTIVE | 37.5 | 37.5 | 17.5 | 3.5 | N/A | N/A | N/A | N/A | 2.2 | N/A |
| ATS-X53400B-C1-R0 | ACTIVE | 40.0 | 40.0 | 7.5 | 9.1 | N/A | N/A | N/A | N/A | 3.7 | N/A |
| ATS-X53400G-C1-R0 | ACTIVE | 40.0 | 40.0 | 12.5 | 4.6 | N/A | N/A | N/A | N/A | 2.4 | N/A |
| ATS-X53400P-C1-R0 | ACTIVE | 40.0 | 40.0 | 17.5 | 3.2 | N/A | N/A | N/A | N/A | 1.7 | N/A |
| ATS-X53425B-C1-R0 | ACTIVE | 42.5 | 42.5 | 7.5 | 8.4 | N/A | N/A | N/A | N/A | 3.6 | N/A |
| ATS-X53425G-C1-R0 | ACTIVE | 42.5 | 42.5 | 12.5 | 4.3 | N/A | N/A | N/A | N/A | 2.3 | N/A |
| ATS-X53425P-C1-R0 | ACTIVE | 42.5 | 42.5 | 17.5 | 3.0 | N/A | N/A | N/A | N/A | 1.7 | N/A |
| ATS-X53450B-C1-R0 | ACTIVE | 45.0 | 45.0 | 7.5 | 8.4 | N/A | N/A | N/A | N/A | 2.9 | N/A |
| ATS-X53450G-C1-R0 | ACTIVE | 45.0 | 45.0 | 12.5 | 4.1 | N/A | N/A | N/A | N/A | 1.9 | N/A |
| ATS-X53450P-C1-R0 | ACTIVE | 45.0 | 45.0 | 17.5 | 2.8 | N/A | N/A | N/A | N/A | 1.6 | N/A |
