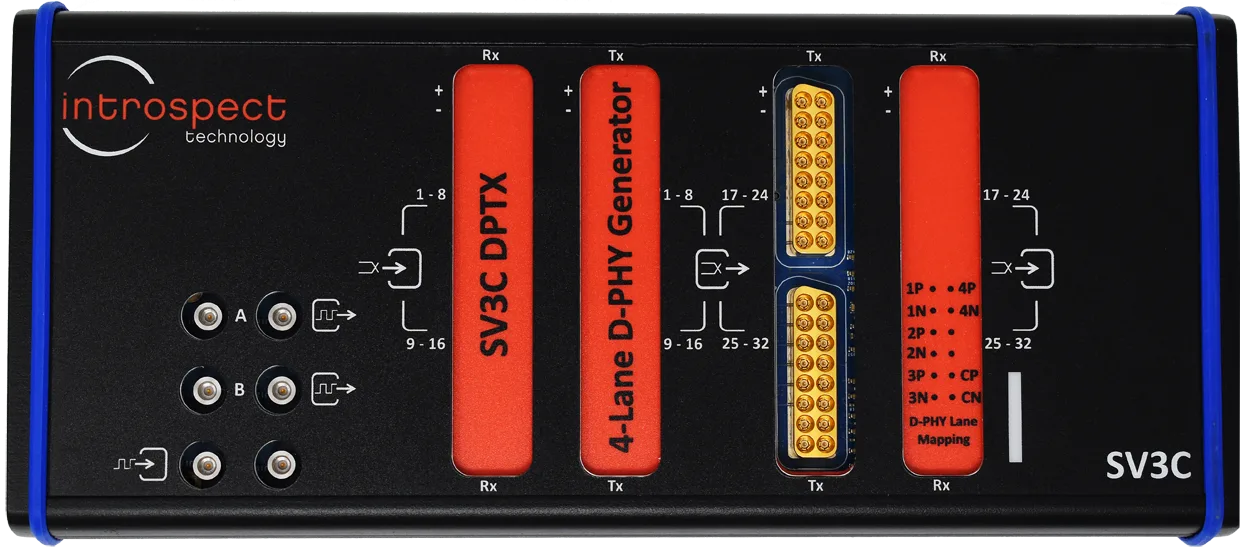

SV3C-DPTX MIPI D-PHY Generator
Ultra-Portable, High-Performance, MIPI D-PHY Generator up to 6.5 Gbps
- Any-rate operation
- Per-lane HS voltage level and common-mode control
- Per-lane LP voltage level control
- Per-lane skew injection with < 1 ps resolution
- Per-lane multi-source jitter injection
- State-of-the-art programming environment based on the highly intuitive Python language
The SV3C-DPTX MIPI D-PHY Generator is an ultra-portable, high-performance instrument that provides the most comprehensive D-PHY receiver test capabilities available on the market.
The instrument operates at a continuous range of data rates and includes analog parameter controls that enable deep insights into receiver voltage sensitivity, receiver skew and jitter tolerance for receiver stress-testing. The D-PHY Generator operates with Introspect’s award-winning software environment, Pinetree, for automated physical layer compliance test, including the MIPI CTS. Pinetree also includes pattern compiler tools that enable the generation of complete DSI or CSI-2 packets such as color bars and active image frames for system-level test.
Verify Critical Security and Functional Safety Features of your Next-Generation Products with the MIPI CSE Analysis License
The MIPI CSE Analysis License is a dedicated, hardware-locked application that runs on the Introspect Technology SV5C MIPI Generator and Analyzer products. Covering message-based and frame-based data service protocols, this application enables the generation of encrypted packets and payload data when operated on an SV5C MIPI Generator, and it enables decoding and authenticating data when operated on an SV5C MIPI Analyzer. Thus, it represents a complete, golden-standard solution for validating Functional Safety (FuSa) and Security (Sec) data protection services in safety-critical imaging and vision applications.
